Network Analyzers

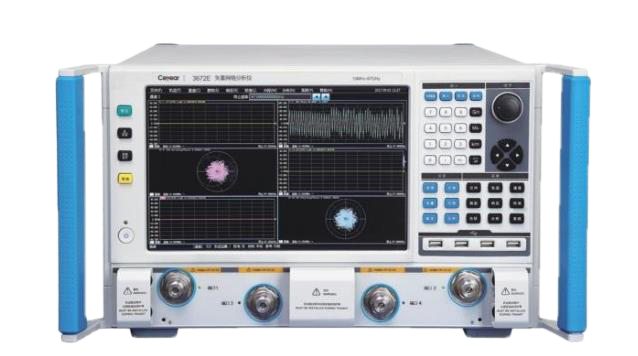

3672 Series Vector Network Analyzers
Technical Specification
3672A/B Technical Specification
| Frequency Characteristic |
||||||
| Frequency Range |
10MHz ～ 13.5/26.5GHz |
|||||
| Frequency Resolution |
1Hz |
|||||
| Frequency Accuracy |
± 1 × 10 -7 ( 23 ℃± 3 ℃ ) |
|||||
| Port Harmonic Suppression |
Typical value |
|||||
| Port 1 、 3 Harmonic suppression |
-48dBc ( 0.01 ～ 4GHz ) -57dBc ( 4 ～ 13.5GHz ) -57dBc ( 13.5 ～ 26.5GHz ) |
-51dBc ( 0.01 ～ 4GHz ) -60dBc ( 4 ～ 13.5GHz ) -60dBc ( 13.5 ～ 26.5GHz ) |
||||
| Port 2 、 4 Harmonic suppression |
-13dBc ( 0.01 ～ 4GHz ) -18dBc ( 4 ～ 13.5GHz ) -18dBc ( 13.5 ～ 26.5GHz ) |
-13dBc ( 0.01 ～ 4GHz ) -21dBc ( 4 ～ 13.5GHz ) -21dBc ( 13.5 ～ 26.5GHz ) |
||||
| Port Power Characteristics |
Typical value |
|||||
| Power Sweep Range |
33dB ( 10 ～ 500MHz ) 30dB ( 0.5 ～ 4GHz ) 34dB ( 4 ～ 7GHz ) 31dB ( 7 ～ 13.5GHz ) 29dB ( 13.5 ～ 20GHz ) 25dB ( 20 ～ 26.5GHz ) |
42dB ( 10 ～ 500MHz ) 37dB ( 0.5 ～ 4GHz ) 42dB ( 4 ～ 7GHz ) 41dB ( 7 ～ 13.5GHz ) 38dB ( 13.5 ～ 20GHz ) 35dB ( 20 ～ 26.5GHz ) |
||||
| Maximum output power (Standard configuration, 400 option) |
Port 1 、 3 |
0dBm ( 0.01 ～ 4GHz )(Filter mode) +9dBm ( 10 ～ 50MHz )(High Power Mode) +6dBm ( 0.05 ～ 4GHz )(High Power Mode) +12dBm ( 4 ～ 7GHz ) +8dBm ( 7 ～ 13.5GHz ) +6dBm ( 13.5 ～ 20GHz ) +4dBm ( 20 ～ 26.5GHz ) |
+16dBm ( 10 ～ 50MHz )(High Power Mode) +11dBm ( 0.05 ～ 4GHz )(High Power Mode) +16dBm ( 4 ～ 7GHz ) +14dBm ( 7 ～ 13.5GHz ) +11dBm ( 13.5 ～ 20GHz ) +9dBm ( 20 ～ 26.5GHz ) |
|||
| Port 2 、 4 |
+13dBm ( 10 ～ 50MHz ) +13dBm ( 0.05 ～ 4GHz ) +10dBm ( 4 ～ 7GHz ) +9dBm ( 7 ～ 13.5GHz ) +6dBm ( 13.5 ～ 20GHz ) +2dBm ( 20 ～ 26.5GHz ) |
+16dBm ( 10 ～ 50MHz ) +16dBm ( 0.05 ～ 4GHz ) +16dBm ( 4 ～ 7GHz ) +15dBm ( 7 ～ 13.5GHz ) +13dBm ( 13.5 ～ 20GHz ) +8dBm ( 20 ～ 26.5GHz ) |
||||
| Maximum output power ( 201 、 401 、 402 option) |
Port 1 、 3 |
-1dBm ( 0.01 ～ 4GHz )(Filter mode) +8dBm ( 10 ～ 50MHz )(High Power Mode) +5dBm ( 0.05 ～ 4GHz )(High Power Mode) +10dBm ( 4 ～ 7GHz ) +6dBm ( 7 ～ 13.5GHz ) +4dBm ( 13.5 ～ 20GHz ) +2dBm ( 20 ～ 26.5GHz ) |
+15dBm ( 10 ～ 50MHz )(High Power Mode) +10dBm ( 0.05 ～ 4GHz )(High Power Mode) +15dBm ( 4 ～ 7GHz ) +13dBm ( 7 ～ 13.5GHz ) +10dBm ( 13.5 ～ 20GHz ) +8dBm ( 20 ～ 26.5GHz ) |
|||
| Port 2 、 4 |
+12dBm ( 10 ～ 50MHz ) +12dBm ( 0.05 ～ 4GHz ) +9dBm ( 4 ～ 7GHz ) +8dBm ( 7 ～ 13.5GHz ) +5dBm ( 13.5 ～ 20GHz ) 0dBm ( 20 ～ 26.5GHz ) |
+15dBm ( 10 ～ 50MHz ) +15dBm ( 0.05 ～ 4GHz ) +15dBm ( 4 ～ 7GHz ) +14dBm ( 7 ～ 13.5GHz ) +12dBm ( 13.5 ～ 20GHz ) +7dBm ( 20 ～ 26.5GHz ) |
||||
| 1dB compression level |
/ |
+13dBm |
||||
| Pulse Characteristics |
Typical value |
|||||
| Pulse width setting range |
33ns ～ 60s |
20ns ～ 60s |
||||
| Pulse transition time ( 10 ％ -90 ％) |
30ns |
20ns |
||||
| Pulse switching ratio |
64dB ( 0.01 ～ 4GHz ) 80dB ( 4 ～ 26.5GHz ) |
|||||
| Network Parameter Characterization |
Typical value |
|||||
| System dynamic range |
90dB ( 0.01 ～ 1GHz ) 120dB ( 1 ～ 4GHz ) 127dB ( 4 ～ 10GHz ) 120dB ( 10 ～ 20GHz ) 115dB ( 20 ～ 24GHz ) 110dB ( 24 ～ 26.5GHz ) |
100dB ( 0.01 ～ 1GHz ) 128dB ( 1 ～ 4GHz ) 135dB ( 4 ～ 10GHz ) 132dB ( 10 ～ 20GHz ) 129dB ( 20 ～ 24GHz ) 125dB ( 24 ～ 26.5GHz ) |
||||
| Effective directionality |
48dB ( 0.01 ～ 2GHz ) 44dB ( 2 ～ 26.5GHz ) |
60dB ( 0.01 ～ 2GHz ) 53dB ( 2 ～ 26.5GHz ) |
||||
| Effective source matching |
40dB ( 0.01 ～ 2GHz ) 30dB ( 2 ～ 26.5GHz ) |
46dB ( 0.01 ～ 2GHz ) 36dB ( 2 ～ 26.5GHz ) |
||||
| Effective load matching |
48dB ( 0.01 ～ 2GHz ) 44dB ( 2 ～ 26.5GHz ) |
60dB ( 0.01 ～ 2GHz ) 51dB ( 2 ～ 26.5GHz ) |
||||
| Reflective tracking |
± 0.04dB ( 0.01 ～ 2GHz ) ± 0.05dB ( 2 ～ 26.5GHz ) |
± 0.004dB ( 0.01 ～ 2GHz ) ± 0.010dB ( 2 ～ 26.5GHz ) |
||||
| Transmission tracking |
± 0.10dB ( 0.01 ～ 2GHz ) ± 0.12dB ( 2 ～ 26.5GHz ) |
± 0.005dB ( 0.01 ～ 2GHz ) ± 0.015dB ( 2 ～ 26.5GHz ) |
||||
| Others |
Typical value |
|||||
| Amplitude trace noise dB rms ( 1kHz IF bandwidth) |
0.0500 ( 10 ～ 50MHz ) 0.0070 ( 50 ～ 500MHz ) 0.0020 ( 0.5 ～ 13.5GHz ) 0.0030 ( 13.5 ～ 20GHz ) 0.0050 ( 20 ～ 26.5GHz ) |
0.0020 ( 10 ～ 50MHz ) 0.0008 ( 50 ～ 500MHz ) 0.0009 ( 0.05 ～ 13.5GHz ) 0.0008 ( 13.5 ～ 20GHz ) 0.0010 ( 20 ～ 26.5GHz ) |
||||
| Phase trace noise deg rms ( 1kHz IF bandwidth) |
0.200 ( 10 ～ 50MHz ) 0.051 ( 50 ～ 500MHz ) 0.042 ( 0.5 ～ 13.5GHz ) 0.054 ( 13.5 ～ 20GHz ) 0.054 ( 20 ～ 26.5GHz ) |
0.020 ( 10 ～ 50MHz ) 0.006 ( 50 ～ 500MHz ) 0.006 ( 0.05 ～ 13.5GHz ) 0.006 ( 13.5 ～ 20GHz ) 0.012 ( 20 ～ 26.5GHz ) |
||||
| IF bandwidth |
1Hz ～ 5MHz |
|||||
| Amplitude display resolution |
0.001dB/div |
|||||
| Phase display resolution |
0.01 ° /div |
|||||
| Phase display resolution, Setting Required Values |
-500 ～ +500dB |
|||||
| Phase of reference level, Setting Required Values |
-500 ～ +500 ° |
|||||
| General Characteristics |
||||||
| Port Connector type |
3.5mm (male), system impedance 50 Ω |
|||||
| Number of measurement ports |
3672A/B Standard configuration: 2 Port； 3672A/B-400 option： 4 Port |
|||||
| Peripheral interface |
USB , GPIB , VGA , LAN 接口 |
|||||
| Operating system |
Windows 7 |
|||||
| Display Mode |
12.1 inch high-resolution touchscreen display |
|||||
| Overall size |
W ´ H ´ D =426mm×266mm×550mm (feet and handles not included) W ´ H ´ D =516mm × 280mm × 640mm (Includes handles, bottom feet and back feet) |
|||||
| Maximum power consumption |
400W |
|||||
| Power supply |
50Hz single phase 220V or 50Hz/60Hz single phase 110V AC |
|||||
| Maximum weight |
42kg |
|||||
3672C/D Technical Specification
| Frequency Characteristic |
|||||
| Frequency Range |
10MHz ～ 43.5/50GHz |
||||
| Frequency Resolution |
1Hz |
||||
| Frequency Accuracy |
± 1 × 10 -7 ( 23 ℃± 3 ℃ ) |
||||
| Port Harmonic Suppression |
Typical value |
||||
| Port 1 、 3 Harmonic suppression |
-48dBc ( 0.01 ～ 4GHz ) -57dBc ( 4 ～ 13.5GHz ) -57dBc ( 13.5 ～ 50GHz ) |
-51dBc ( 0.01 ～ 4GHz ) -60dBc ( 4 ～ 13.5GHz ) -60dBc ( 13.5 ～ 50GHz ) |
|||
| Port 2 、 4 Harmonic suppression |
-13dBc ( 0.01 ～ 4GHz ) -18dBc ( 4 ～ 13.5GHz ) -57dBc ( 13.5 ～ 50GHz ) |
-13dBc ( 0.01 ～ 4GHz ) -21dBc ( 4 ～ 13.5GHz ) -60dBc ( 13.5 ～ 50GHz ) |
|||
| Port Power Characteristics |
Typical value |
||||
| Power Sweep Range |
32dB ( 10 ～ 50MHz ) 29dB ( 0.05 ～ 4GHz ) 28dB ( 4 ～ 13.5GHz ) 30dB ( 13.5 ～ 40GHz ) 27dB ( 40 ～ 47GHz ) 15dB ( 47 ～ 50GHz ) |
41dB ( 10 ～ 500MHz ) 40dB ( 0.5 ～ 4GHz ) 36dB ( 4 ～ 13.5GHz ) 38dB ( 13.5 ～ 40GHz ) 36dB ( 40 ～ 47GHz ) 23dB ( 47 ～ 50GHz ) |
|||
| Maximum output power (Standard configuration, 400 option) |
Port 1 、 3 |
-1dBm ( 10 ～ 50MHz )(Filter mode) 0dBm ( 0.05 ～ 4GHz )(Filter mode) +8dBm ( 10 ～ 50MHz )(High Power Mode) +5dBm ( 0.05 ～ 4GHz )(High Power Mode) +5dBm ( 4 ～ 13.5GHz ) +7dBm ( 13.5 ～ 40GHz ) +5dBm ( 40 ～ 47GHz ) -7dBm ( 47 ～ 50GHz ) |
+13dBm ( 10 ～ 50MHz )(High Power Mode) +9dBm ( 0.05 ～ 4GHz )(High Power Mode) +9dBm ( 4 ～ 13.5GHz ) +13dBm ( 13.5 ～ 40GHz ) +10dBm ( 40 ～ 47GHz ) -1dBm ( 47 ～ 50GHz ) |
||
| Port 2 、 4 |
+11dBm ( 10 ～ 50MHz ) +9dBm ( 0.05 ～ 4GHz ) +6dBm ( 4 ～ 13.5GHz ) +7dBm ( 13.5 ～ 40GHz ) +5dBm ( 40 ～ 47GHz ) -7dBm ( 47 ～ 50GHz ) |
+16dBm ( 10 ～ 50MHz ) +15dBm ( 0.05 ～ 4GHz ) +13dBm ( 4 ～ 13.5GHz ) +12dBm ( 13.5 ～ 40GHz ) +9dBm ( 40 ～ 47GHz ) -1dBm ( 47 ～ 50GHz ) |
|||
| Maximum output power ( 201 、 401 、 402 option) |
Port 1 、 3 |
-2dBm ( 10 ～ 50MHz )(Filter mode) -1dBm ( 0.05 ～ 4GHz )(Filter mode) +7dBm ( 10 ～ 50MHz )(High Power Mode) +4dBm ( 0.05 ～ 4GHz )(High Power Mode) +3dBm ( 4 ～ 13.5GHz ) +5dBm ( 13.5 ～ 40GHz ) +2dBm ( 40 ～ 47GHz ) -10dBm ( 47 ～ 50GHz ) |
+12dBm ( 10 ～ 50MHz )(High Power Mode) +8dBm ( 0.05 ～ 4GHz )(High Power Mode) +9dBm ( 4 ～ 13.5GHz ) +12dBm ( 13.5 ～ 40GHz ) +9dBm ( 40 ～ 47GHz ) -1dBm ( 47 ～ 50GHz ) |
||
| Port 2 、 4 |
+10dBm ( 10 ～ 50MHz ) +8dBm ( 0.05 ～ 4GHz ) +4dBm ( 4 ～ 13.5GHz ) +5dBm ( 13.5 ～ 40GHz ) +2dBm ( 40 ～ 47GHz ) -10dBm ( 47 ～ 50GHz ) |
+15dBm ( 10 ～ 50MHz ) +14dBm ( 0.05 ～ 4GHz ) +12dBm ( 4 ～ 13.5GHz ) +11dBm ( 13.5 ～ 40GHz ) +8dBm ( 40 ～ 47GHz ) -2dBm ( 47 ～ 50GHz ) |
|||
| 1dB compression level |
/ |
+10dBm |
|||
| Pulse Characteristics |
Typical value |
||||
| Pulse width setting range |
33ns ～ 60s |
20ns ～ 60s |
|||
| Pulse transition time ( 10 ％ -90 ％) |
30ns |
20ns |
|||
| Pulse switching ratio |
64dB ( 0.01 ～ 4GHz ) 80dB ( 4 ～ 40GHz ) 80dB ( 40 ～ 50GHz ) |
||||
| Network Parameter Characterization |
Typical value |
||||
| System dynamic range |
74dB ( 0.01 ～ 1GHz ) 119dB ( 1 ～ 13.5GHz ) 115dB ( 13.5 ～ 26.5GHz ) 110dB ( 26.5 ～ 35GHz ) 105dB ( 35 ～ 47GHz ) 90dB ( 47 ～ 50GHz ) |
105dB ( 0.01 ～ 1GHz ) 133dB ( 1 ～ 13.5GHz ) 126dB ( 13.5 ～ 26.5GHz ) 120dB ( 26.5 ～ 35GHz ) 116dB ( 35 ～ 47GHz ) 103dB ( 47 ～ 50GHz ) |
|||
| Effective directionality |
42dB ( 0.01 ～ 13.5GHz ) 38dB ( 13.5 ～ 40GHz ) 36dB ( 40 ～ 50GHz ) |
50dB ( 0.01 ～ 13.5GHz ) 45dB ( 13.5 ～ 40GHz ) 42dB ( 40 ～ 50GHz ) |
|||
| Effective source matching |
36dB ( 0.01 ～ 2GHz ) 31dB ( 2 ～ 13.5GHz ) 28dB ( 13.5 ～ 40GHz ) 27dB ( 40 ～ 50GHz ) |
43dB ( 0.01 ～ 2GHz ) 34dB ( 2 ～ 13.5GHz ) 33dB ( 13.5 ～ 40GHz ) 33dB ( 40 ～ 50GHz ) |
|||
| Effective load matching |
42dB ( 0.01 ～ 13.5GHz ) 37dB ( 13.5 ～ 40GHz ) 35dB ( 40 ～ 50GHz ) |
60dB ( 0.01 ～ 13.5GHz ) 56dB ( 13.5 ～ 40GHz ) 51dB ( 40 ～ 50GHz ) |
|||
| Reflective tracking |
± 0.04dB ( 0.01 ～ 13.5GHz ) ± 0.03dB ( 13.5 ～ 40GHz ) ± 0.04dB ( 40 ～ 50GHz ) |
± 0.010dB ( 0.01 ～ 13.5GHz ) ± 0.010dB ( 13.5 ～ 40GHz ) ± 0.020dB ( 40 ～ 50GHz ) |
|||
| Transmission tracking |
± 0.1dB ( 0.01 ～ 13.5GHz ) ± 0.16dB ( 13.5 ～ 40GHz ) ± 0.20dB ( 40 ～ 50GHz ) |
± 0.012dB ( 0.01 ～ 13.5GHz ) ± 0.015dB ( 13.5 ～ 40GHz ) ± 0.020dB ( 40 ～ 50GHz ) |
|||
| Others |
Typical value |
||||
| Amplitude trace noise dB rms ( 1kHz IF bandwidth) |
0.050 ( 10 ～ 50MHz ) 0.020 ( 50 ～ 500MHz ) 0.005 ( 0.5 ～ 13.5GHz ) 0.004 ( 13.5 ～ 26.5GHz ) 0.008 ( 26.5 ～ 50GHz ) |
0.0060 ( 10 ～ 50MHz ) 0.0020 ( 50 ～ 500MHz ) 0.0010 ( 0.5 ～ 13.5GHz ) 0.0009 ( 13.5 ～ 26.5GHz ) 0.0040 ( 26.5 ～ 50GHz ) |
|||
| Phase trace noise deg rms ( 1kHz IF bandwidth) |
0.900 ( 10 ～ 50MHz ) 0.700 ( 50 ～ 500MHz ) 0.040 ( 0.5 ～ 13.5GHz ) 0.050 ( 13.5 ～ 26.5GHz ) 0.060 ( 26.5 ～ 50GHz ) |
0.040 ( 10 ～ 50MHz ) 0.010 ( 50 ～ 500MHz ) 0.005 ( 0.5 ～ 13.5GHz ) 0.020 ( 13.5 ～ 26.5GHz ) 0.030 ( 26.5 ～ 50GHz ) |
|||
| IF bandwidth |
1Hz ～ 5MHz |
||||
| Amplitude display resolution |
0.001dB/div |
||||
| Phase display resolution |
0.01 ° /div |
||||
| Phase display resolutionSetting Required Values |
-500 ～ +500dB |
||||
| Phase of reference level, Setting Required Values |
-500 ～ +500 ° |
||||
| General Characteristics |
|||||
| Port Connector type |
2.4mm (male), system impedance 50 Ω |
||||
| Number of measurement ports |
3672C/D Standard configuration: 2 Port； 3672C/D-400 option： 4 Port |
||||
| Peripheral interface |
USB , GPIB , VGA , LAN 接口 |
||||
| Operating system |
Windows 7 |
||||
| Display Mode |
12.1 inch high-resolution touchscreen display |
||||
| Overall size |
W ´ H ´ D =426mm×266mm×600mm (feet and handles not included) W ´ H ´ D =516mm × 280mm × 690mm (Includes handles, bottom feet and back feet) |
||||
| Maximum power consumption |
500W |
||||
| Power supply |
50Hz single phase 220V or 50Hz/60Hz single phase 110V AC |
||||
| Maximum weight |
47kg |
||||
3672E Technical Specification
| Frequency Characteristic |
|||||
| Frequency Range |
10MHz ～ 67GHz |
||||
| Frequency Resolution |
1Hz |
||||
| Frequency Accuracy |
± 1 × 10 -7 ( 23 ℃± 3 ℃ ) |
||||
| Port Harmonic Suppression |
Typical value |
||||
| Port 1 、 3 Harmonic suppression |
-48dBc ( 0.01 ～ 4GHz ) -57dBc ( 4 ～ 67GHz ) |
-51dBc ( 0.01 ～ 4GHz ) -60dBc ( 4 ～ 67GHz ) |
|||
| Port 2 、 4 Harmonic suppression |
-13dBc ( 0.01 ～ 4GHz ) -18dBc ( 4 ～ 13.5GHz ) -57dBc ( 13.5 ～ 67GHz ) |
-13dBc ( 0.01 ～ 4GHz ) -21dBc ( 4 ～ 13.5GHz ) -60dBc ( 13.5 ～ 67GHz ) |
|||
| Port Power Characteristics |
Typical value |
||||
| Power Sweep Range |
32dB ( 10 ～ 50MHz ) 29dB ( 0.05 ～ 4GHz ) 28dB ( 4 ～ 26.5GHz ) 29dB ( 26.5 ～ 35GHz ) 26dB ( 35 ～ 40GHz ) 25dB ( 40 ～ 67GHz ) |
42dB ( 10 ～ 500MHz ) 38dB ( 0.5 ～ 4GHz ) 36dB ( 4 ～ 26.5GHz ) 35dB ( 26.5 ～ 35GHz ) 34dB ( 35 ～ 40GHz ) 32dB ( 40 ～ 67GHz ) |
|||
| Maximum output power (Standard configuration, 400 option) |
Port 1 、 3 |
-1dBm ( 10 ～ 50MHz )(Filter mode) 0dBm ( 0.05 ～ 4GHz )(Filter mode) +8dBm ( 10 ～ 50MHz )(High Power Mode) +5dBm ( 0.05 ～ 4GHz )(High Power Mode) +1dBm ( 4 ～ 13.5GHz ) +5dBm ( 13.5 ～ 26.5GHz ) +3dBm ( 26.5 ～ 40GHz ) +5dBm ( 40 ～ 67GHz ) |
+16dBm ( 10 ～ 50MHz )(High Power Mode) +10dBm ( 0.05 ～ 4GHz )(High Power Mode) +9dBm ( 4 ～ 13.5GHz ) +11dBm ( 13.5 ～ 26.5GHz ) +10dBm ( 26.5 ～ 40GHz ) +9dBm ( 40 ～ 67GHz ) |
||
| Port 2 、 4 |
+8dBm ( 10 ～ 50MHz ) +5dBm ( 0.05 ～ 4GHz ) +1dBm ( 4 ～ 13.5GHz ) +5dBm ( 13.5 ～ 26.5GHz ) +3dBm ( 26.5 ～ 40GHz ) +5dBm ( 40 ～ 67GHz ) |
+16dBm ( 10 ～ 50MHz ) +15dBm ( 0.05 ～ 4GHz ) +10dBm ( 4 ～ 13.5GHz ) +11dBm ( 13.5 ～ 26.5GHz ) +9dBm ( 26.5 ～ 40GHz ) +8dBm ( 40 ～ 67GHz ) |
|||
| Maximum output power ( 201 、 401 、 402 option) |
Port 1 、 3 |
-2dBm ( 10 ～ 50MHz )(Filter mode) -1dBm ( 0.05 ～ 4GHz )(Filter mode) +7dBm ( 10 ～ 50MHz )(High Power Mode) +4dBm ( 0.05 ～ 4GHz )(High Power Mode) -2dBm ( 4 ～ 13.5GHz ) +3dBm ( 13.5 ～ 26.5GHz ) 0dBm ( 26.5 ～ 67GHz ) |
+15dBm ( 10 ～ 50MHz )(High Power Mode) +9dBm ( 0.05 ～ 4GHz )(High Power Mode) +6dBm ( 4 ～ 13.5GHz ) +7dBm ( 13.5 ～ 26.5GHz ) +4dBm ( 26.5 ～ 67GHz ) |
||
| Port 2 、 4 |
+7dBm ( 10 ～ 50MHz ) +4dBm ( 0.05 ～ 4GHz ) -2dBm ( 4 ～ 13.5GHz ) +3dBm ( 13.5 ～ 26.5GHz ) 0dBm ( 26.5 ～ 67GHz ) |
+15dBm ( 10 ～ 50MHz ) +14dBm ( 0.05 ～ 4GHz ) +9dBm ( 4 ～ 13.5GHz ) +10dBm ( 13.5 ～ 26.5GHz ) +5dBm ( 26.5 ～ 67GHz ) |
|||
| 1dB compression level |
/ |
+10dBm |
|||
| Pulse Characteristics |
Typical value |
||||
| Pulse width setting range |
33ns ～ 60s |
20ns ～ 60s |
|||
| Pulse transition time ( 10 ％ -90 ％) |
30ns |
20ns |
|||
| Pulse switching ratio |
64dB ( 0.01 ～ 4GHz ) 80dB ( 4 ～ 67GHz ) |
||||
| Network Parameter Characterization |
Typical value |
||||
| System dynamic range |
74dB ( 0.01 ～ 1GHz ) 100dB ( 1 ～ 4GHz ) 120dB ( 4 ～ 10GHz ) 112dB ( 10 ～ 26.5GHz ) 108dB ( 26.5 ～ 35GHz ) 105dB ( 35 ～ 50GHz ) 100dB ( 50 ～ 67GHz ) |
100dB ( 0.01 ～ 1GHz ) 125dB ( 1 ～ 4GHz ) 125dB ( 4 ～ 10GHz ) 120dB ( 10 ～ 26.5GHz ) 115dB ( 26.5 ～ 35GHz ) 112dB ( 35 ～ 50GHz ) 105dB ( 50 ～ 67GHz ) |
|||
| Effective directionality |
35dB ( 0.01 ～ 2GHz ) 41dB ( 2 ～ 13.5GHz ) 34dB ( 13.5 ～ 40GHz ) 32dB ( 40 ～ 67GHz ) |
50dB ( 0.01 ～ 2GHz ) 50dB ( 2 ～ 13.5GHz ) 50dB ( 13.5 ～ 40GHz ) 42dB ( 40 ～ 67GHz ) |
|||
| Effective load matching |
35dB ( 0.01 ～ 2GHz ) 41dB ( 2 ～ 13.5GHz ) 33dB ( 13.5 ～ 40GHz ) 30dB ( 40 ～ 67GHz ) |
60dB ( 0.01 ～ 2GHz ) 50dB ( 2 ～ 13.5GHz ) 50dB ( 13.5 ～ 40GHz ) 45dB ( 40 ～ 67GHz ) |
|||
| Reflective tracking |
± 0.05dB ( 0.01 ～ 2GHz ) ± 0.06dB ( 2 ～ 13.5GHz ) ± 0.08dB ( 13.5 ～ 40GHz ) ± 0.10dB ( 40 ～ 67GHz ) |
± 0.005dB ( 0.01 ～ 2GHz ) ± 0.005dB ( 2 ～ 13.5GHz ) ± 0.008dB ( 13.5 ～ 40GHz ) ± 0.010dB ( 40 ～ 67GHz ) |
|||
| Transmission tracking |
± 0.10dB ( 0.01 ～ 2GHz ) ± 0.11dB ( 2 ～ 13.5GHz ) ± 0.16dB ( 13.5 ～ 40GHz ) ± 0.20dB ( 40 ～ 67GHz ) |
± 0.005dB ( 0.01 ～ 2GHz ) ± 0.006dB ( 2 ～ 13.5GHz ) ± 0.015dB ( 13.5 ～ 40GHz ) ± 0.020dB ( 40 ～ 67GHz ) |
|||
| Others |
Typical value |
||||
| Amplitude trace noise dB rms ( 1kHz IF bandwidth) |
0.050 ( 10 ～ 50MHz ) 0.020 ( 50 ～ 500MHz ) 0.005 ( 0.5 ～ 13.5GHz ) 0.004 ( 13.5 ～ 26.5GHz ) 0.020 ( 26.5 ～ 67GHz ) |
0.0090 ( 10 ～ 50MHz ) 0.0020 ( 50 ～ 500MHz ) 0.0008 ( 0.5 ～ 13.5GHz ) 0.0008 ( 13.5 ～ 26.5GHz ) 0.0050 ( 26.5 ～ 67GHz ) |
|||
| Phase trace noise deg rms ( 1kHz IF bandwidth) |
0.90 ( 10 ～ 50MHz ) 0.70 ( 50 ～ 500MHz ) 0.04 ( 0.5 ～ 13.5GHz ) 0.05 ( 13.5 ～ 26.5GHz ) 0.10 ( 26.5 ～ 67GHz ) |
0.010 ( 10 ～ 50MHz ) 0.010 ( 50 ～ 500MHz ) 0.006 ( 0.5 ～ 13.5GHz ) 0.007 ( 13.5 ～ 26.5GHz ) 0.030 ( 26.5 ～ 67GHz ) |
|||
| IF bandwidth |
1Hz ～ 5MHz |
||||
| Amplitude display resolution |
0.001dB/div |
||||
| Phase display resolution |
0.01 ° /div |
||||
| Phase display resolutionSetting Required Values |
-500 ～ +500dB |
||||
| Phase of reference level, Setting Required Values |
-500 ～ +500 ° |
||||
| General Characteristics |
|||||
| Port Connector type |
1.85mm (male), system impedance 50 Ω |
||||
| Number of measurement ports |
3672E Standard configuration: 2 Port； 3672E-400 option： 4 Port |
||||
| Peripheral interface |
USB , GPIB , VGA , LAN 接口 |
||||
| Operating system |
Windows 7 |
||||
| Display Mode |
12.1 inch high-resolution touchscreen display |
||||
| Overall size |
W ´ H ´ D =426mm×266mm×600mm (feet and handles not included) W ´ H ´ D =516mm × 280mm × 690mm (Includes handles, bottom feet and back feet) |
||||
| Maximum power consumption |
500W |
||||
| Power supply |
50Hz single phase 220V or 50Hz/60Hz single phase 110V AC |
||||
| Maximum weight |
50kg |
||||
Product Overview
The 3672 series of vector network analyzers include the 3672A (10MHz to 13.5GHz), 3672B (10MHz to 26.5GHz), 3672C (10MHz to 43.5GHz), 3672D (10MHz to 50GHz), and 3672E (10MHz to 67GHz). 3672 series vector network analyzers offer frequency response, single port, response isolation, enhanced response, full dual port, and electrical calibration. The 3672 series of vector network analyzers provide a variety of calibration methods, such as frequency response, single port, response isolation, enhanced response, full dual-port, electrical calibration, etc., and are equipped with a variety of display formats, such as logarithmic amplitude, linear amplitude, standing wave, phase, group delay, Smith Circle, polar coordinate, etc., and are equipped with a variety of standard interfaces, such as USB, LAN, GPIB, VGA, etc., and in addition to having all of the measurement functions of the traditional vector network analyzers, the analyzers also provide the following features In addition to all the measurement functions of a traditional vector network analyzer, it can also be configured with functional options for multifunctional integrated parameter testing of mixer/converter, gain compression two-dimensional scanning and S-parameters under the pulse state, which can accurately measure the amplitude-frequency characteristics, phase-frequency characteristics and group delay characteristics of microwave networks. This product can be widely used in the fields of transmit/receive (T/R) module measurement, dielectric material property measurement, microwave pulse property measurement and optoelectronic property measurement, etc. It is an indispensable test equipment in the scientific research and production process of communication and navigation systems.
