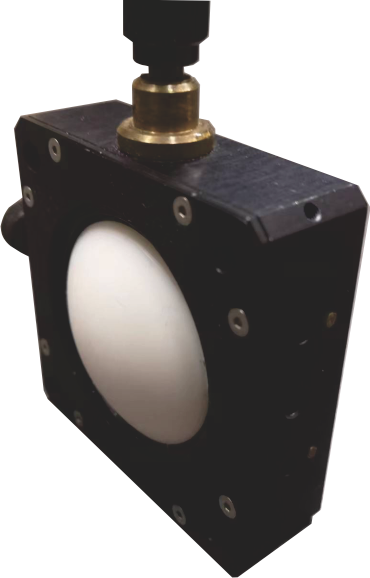

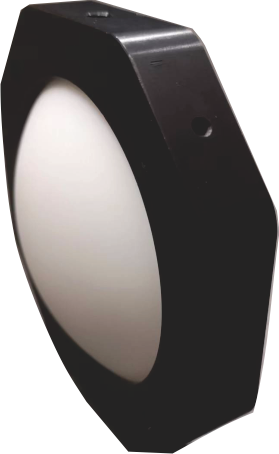

Terahertz lens
Based on your demand, we provide versatile designs of THz lens which can be operated from 0.1 to 1.2 THz, enabling precision control of terahertz waves. Our lens focuses divergent waves from a source into a unit area, enhancing the overall performance of your THz systems. Experience unparalleled accuracy, efficiency, and reliability, all bundled in our meticulously crafted lenses, ready to revolutionize your technological needs.
| Model | Aperture (inch) | Focal length (mm) | Material | Shape |
|---|---|---|---|---|
| Tera0101 | 2 | 50 | PTFE or PE | spherical, plano-convexl |
| Tera0102 | 2 | 100 | PTFE or PE | spherical, plano-convexl |
| Tera0103 | 2 | 50 | PTFE or PE | paraboloid, spherical, plano-convex |
| Tera0104 | 2 | 100 | PTFE or PE | paraboloid, spherical, plano-convex |
| Tera0105 | 3 | 100 | PTFE or PE | spherical, plano-convexl |
| Tera0106 | 3 | 150 | PTFE or PE | spherical, plano-convexl |
| Tera0107 | 3 | 100 | PTFE or PE | paraboloid, spherical, plano-convex |
| Tera0108 | 3 | 150 | PTFE or PE | paraboloid, spherical, plano-convex |
| Tera0109 | 4 | 65 | PTFE or PE | biparabloid |
| Tera0110 | 4 | 100 | PTFE or PE | paraboloid, spherical, plano-convex |
| Tera0111 | 4 | 150 | PTFE or PE | paraboloid, spherical, plano-convex |
| Tera0112 | 5 | 100 | PTFE or PE | paraboloid, spherical, plano-convex |
| Tera0113 | 5 | 150 | PTFE or PE | paraboloid, spherical, plano-convex |
THz attenuators
Our THz Attenuators are designed primarily to attenuate high-power terahertz waves ranging from 100 GHz to 1.2 THz. These attenuators are manufactured by depositing a metal thin film onto a PP (Polypropylene) membrane. The level of attenuation can be customized to suit your specific needs. You can combine different attenuator films to create a terahertz attenuator module. The attenuator sheets can be used individually or combined to achieve higher attenuation rates.
| Model | Attenuation factor | Operating frequency (THz) | Aperture (inch) |
|---|---|---|---|
| Tera0201 | 16% | 0.1 - 1.2 | 2 and 3 |
| Tera0202 | 30% | 0.1 - 1.2 | 2 and 3 |
| Tera0203 | 50% | 0.1 - 1.2 | 2 and 3 |
| Tera0204 | 60% | 0.1 - 1.2 | 2 and 3 |

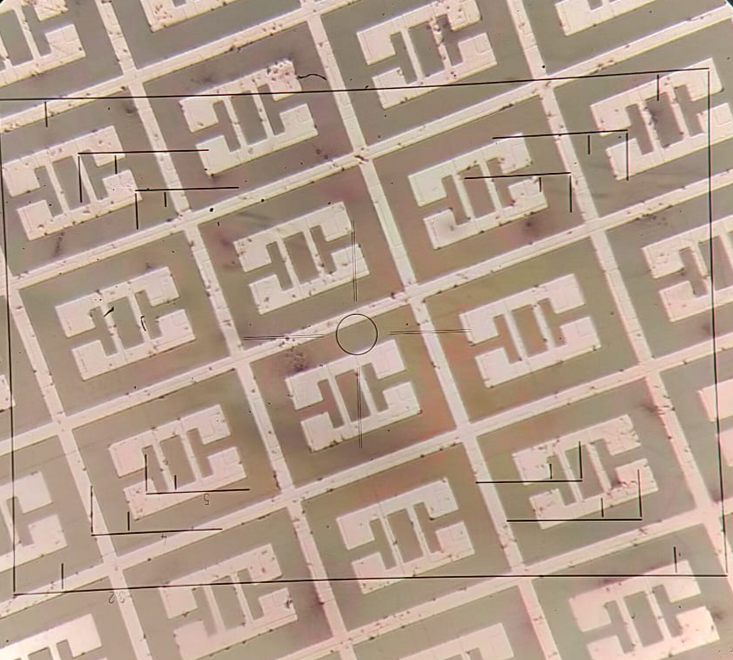

THz frequency selective surface
Based on the principles of metamaterials, our product employs micrometer-scale metal patterns to provide high-pass, low-pass, band-pass, or band-stop functions in the millimeter-wave and terahertz frequency ranges. The manufacturing process uses flexible ultra-thin films as the substrate, combined with semiconductor lithography technology, to create high-precision, ultra-low loss devices. When used in a terahertz quasi-optical system, this product can achieve effective standing wave suppression and harmonic component suppression. We offer customization services to meet the requirements of different working systems.
| Effective diameter | < 75 mm |
|---|---|
| Operating frequency | < 1 THz |
| Metal material | Gold/Aluminium |
| Substrate membrane | Low permittivity film > 5 um |
| Insertion loss @ f0 | < 1 dB (depending on the operating frequency and the film thickness) |
| Isolation @ 2*f0 | > 15 dB (single layer, can be stacked in multiple layers to further improve isolation) |
