Network Analyzers

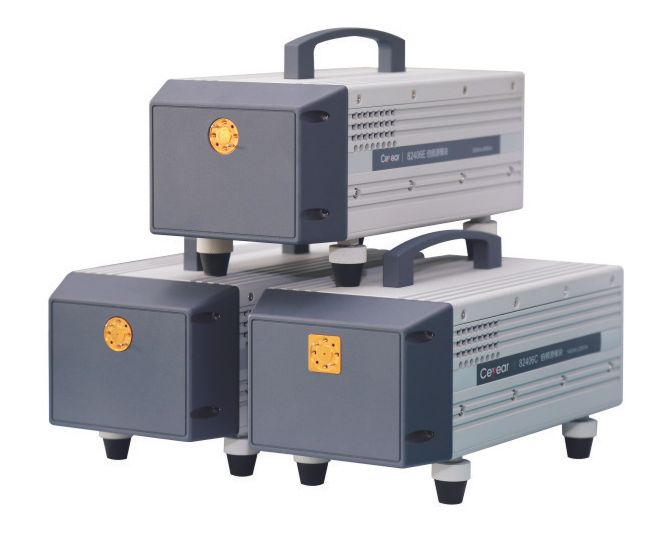

Millimeter-Wave

Frequency Extender module

Working Mode System Dynamic Range

Full Duplex RX/TX ≥ 100dB

Effective Directivity

≤ -35dB

Technical Specifications | Product Overview

Technical Specifications

Model Technical Specifications	3643K	3644A	3643NA	3643N	3645A	3643P
Frequency Range	40GHz ～ 60GHz	50GHz ～ 75GHz	50GHz ～ 75GHz	60GHz ～ 90GHz	75GHz ～ 110GHz	75GHz ～ 110GHz
Port Output Power	≥ +6dBm	≥ +5dBm	≥ +5dBm	≥ +5dBm	≥ +5dBm	≥ +5dBm
System Dynamic Range ( IF Bandwidth 10Hz )	≥ 100dB	≥ 100dB	≥ 100dB	≥ 100dB	≥ 100dB	≥ 100dB
Reflective Tracking ( dB)	≤ 0.12	≤ 0.12	≤ 0.12	≤ 0.12	≤ 0.12	≤ 0.12
Transmission Tracking ( dB)	≤ 0.12	≤ 0.12	≤ 0.12	≤ 0.12	≤ 0.12	≤ 0.12
Effective Directionality (dB)	≤ -35dB	≤ -35dB	≤ -35dB	≤ -35dB	≤ -35dB	≤ -35dB
Effective Load Matching (dB)	≤ -35dB	≤ -35dB	≤ -35dB	≤ -35dB	≤ -35dB	≤ -35dB
Port Connector Type	WR19 , System impedance 1 Ω	WR15 , System impedance 1 Ω	WR15 , System impedance 1 Ω	WR12 , System impedance 1 Ω	WR10 , System impedance 1 Ω	WR10 , System impedance 1 Ω
Working Voltage	12VDC@2A	12VDC@2A	12VDC@2A	12VDC@2A	12VDC@3A	12VDC@3A
Size W × H × D (mm)	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240

Model Technical Specifications	3643QA	3643Q	3649	3643SA	3643R	3649A	3649B
Frequency Range	90GHz ～ 140GHz	110GHz ～ 170GHz	170GHz ～ 220GHz	140GHz ～ 220GHz	170GHz ～ 260GHz	220GHz ～ 325GHz	325GHz ～ 500GHz
Port Output Power	≥ +3dBm	≥ -1dBm	≥ -10dBm	≥ -9dBm	≥ -10dBm	≥ -13dBm	≥ -23dBm
System Dynamic Range (IF Bandwidth 10Hz )	≥ 100dB	≥ 100dB	≥ 100dB	≥ 100dB	≥ 100dB	≥ 95dB	≥ 80dB
Reflective Tracking ( dB)	≤ 0.15	≤ 0.15	≤ 0.2	≤ 0.25	≤ 0.2	≤ 0.2	≤ 0.3
Transmission Tracking ( dB)	≤ 0.15	≤ 0.15	≤ 0.2	≤ 0.25	≤ 0.2	≤ 0.2	≤ 0.3
Effective Directionality (dB)	≤ -34dB	≤ -34dB	≤ -30dB	≤ -30dB	≤ -25dB	≤ -25dB	≤ -20dB
Effective Load Matching (dB)	≤ -34dB	≤ -34dB	≤ -30dB	≤ -30dB	≤ -25dB	≤ -25dB	≤ -20dB
Port Connector Type	WR8.0 , System impedance 1 Ω	WR6.5 , System impedance 1 Ω	WR5.1 , System impedance 1 Ω	WR5.1 , System impedance 1 Ω	WR4.3 , System impedance 1 Ω	WR3.4 , System impedance 1 Ω	WR2.2 , System impedance 1 Ω
Working Voltage	12VDC@3A	12VDC@2A	12VDC@2A	12VDC@2A	12VDC@2A	12VDC@3A	12VDC@3A
Size W × H × D (mm)	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240	120 × 90 × 240

Technical Specifications

Model

Frequency Range

Output Power

Control Interface

Power Output

Power Supply

Size W × H × D (mm)

3640A

8GHz ～ 20GHz

10 ± 1dBm

Test Interface

12VDC@2A

Adaptive Power Supply:

AC220/240V: 50/60Hz

100/115V : 50/60/400Hz

426 × 177 × 460

(Handles, cushion feet and base feet not included)

Product Overview

3643K/44A/43NA/43N/45A/43P/43QA/43Q/49/43SA/43R/49A/49B S-parameter test module has reached the international equivalent level in terms of measurement speed, dynamic range and measurement stability. In terms of hardware, a new design concept and technical program are adopted, so that the key technical performance indexes of the whole machine are significantly improved; in terms of software, the spread spectrum system is based on the platform environment of Windows operating system, so that the interconnectivity and ease of use of the whole machine are greatly improved.

3643K/44A/43NA/43N/45A/43P/43QA/43Q/49/43SA/43R/49A/49B S-parameter test module can be combined with 3640A millimeter-wave spread spectrum controller and vector network analyzer to form a millimeter-wave vector network analyzer system, which can realize the flexible configuration of the frequency bands of 5mm, 3mm, 2mm, 1mm and higher bands, and the frequency can cover up to 500GHz. The system is characterized by simple system configuration, friendly user interface, high testing accuracy, etc., which can realize the measurement of all S-parameters of millimeter-wave network under test. The system is widely used in R&D and production testing of millimeter-wave components, MMICs, antennas and RCS, and materials.
