Signal / Spectrum Analyzer
NEW 4082 Series Signal / Spectrum Analyzer
Frequency range Analyzing Bandwidth
2Hz~110GHz 2GHz
Real-time Bandwidth
1.2GHz
Phase noise (1GHz@10kHz frequency offset))
≤-134dBc/Hz
Display average noise level (1 GHz)
≤ -167dBm/Hz (typical)
Technical Specifications
| Frequency Range |
Model |
DC Coupling |
AC Coupling |
|
| 4082B |
2Hz ~8.4GHz |
10MHz ~8.4GHz |
||
| 4082D |
2Hz ~18GHz |
10MHz ~18GHz |
||
| 4082E |
2Hz ~26.5GHz |
10MHz ~26.5GHz |
||
| 4082F |
2Hz ~45GHz |
10MHz ~45GHz |
||
| 4082H |
2Hz ~50GHz |
10MHz ~50GHz |
||
| 4082L |
2Hz ~67GHz |
10MHz ~67GHz |
||
| 4082N |
2Hz ~90GHz |
— |
||
| 4082P |
2Hz ~110GHz |
— |
||
| 10MHz |
Frequency Accuracy: ±(to last calibration date× Aging rate + Temperature stability + Calibration accuracy) |
|||
| Precision Frequency Reference |
Aging rate: ±5×10 -10 /day |
|||
| Temperature stability: ±5 ´ 10 -8 |
||||
| Frequency Readout Accuracy |
±(Frequency reading value×Frequency reference accuracy + 0.1% bandwidth + 5% resolution bandwidth + 2Hz + 0.5 horizontal resolution * ) |
|||
| * : Horizontal resolution = bandwidth / (number of scan points - 1) |
||||
| Frequency Counting Accuracy |
±(Frequency reading value×Frequency reference accuracy +0.1Hz) |
|||
| Bandwidth |
Range: 0Hz (zero bandwidth), 10Hz to the highest frequency range of the model |
|||
| Accuracy: ±(0.1%×Bandwidth + bandwidth / (number of scan points - 1) ) |
||||
| Scan Time Range |
Bandwidth≥10Hz: 3us~16000s |
|||
| Bandwidth=0Hz: 1us~16000s |
||||
| Resolution Bandwidth |
Range :0.1Hz~20MHz (1、2、3、5 step) |
|||
|
|
||||
| Analyzing Bandwidth |
Standard Configuration: 10MHz |
|||
| option H38-B40: 40MHz |
||||
| option H38-B200: 200MHz |
||||
| option H38-B400: 400MHz |
||||
| optionH38-B600: 600MHz |
||||
| optionH38-B1200: 1.2GHz |
||||
| optionH38-B2000: 2GHz |
||||
| Video Bandwidth |
1Hz ~20MHz (1, 2, 3, 5 step) (rated) |
|||
| Trigger Mode |
Free, Power, Video, External 1, External 2, Timer |
|||
| Detection mode |
Normal, Positive Peak, Negative Peak, Sampling, Video Average, Power Average, Voltage Average |
|||
| Phase Noise |
Frequency offset |
Value |
||
| 100Hz |
-107dBc/Hz |
|||
| 1kHz |
-125dBc/Hz |
|||
| 10kHz |
-134dBc/Hz |
|||
| 100kHz |
-136dBc/Hz |
|||
| 1MHz |
-138dBc/Hz |
|||
| 10MHz |
-152dBc/Hz |
|||
| Residual FM |
≤0.25Hz×N (10 Hz resolution bandwidth, 10 Hz video bandwidth, rated within 20 ms, see harmonic number of band divisions for specific N values) |
|||
| 1dB Gain Compression (Two-tone method of testing with a resolution bandwidth of 5 kHz and a frequency interval of 3 MHz, 20°C ~ 30°C) |
Frequency Range |
Value |
||
| 20MHz ~5.25GHz |
+5dBm |
|||
| 5.25GHz ~8.2GHz |
+7dBm |
|||
| 8.2GHz ~50GHz |
+6dBm |
|||
| 50GHz ~67GHz |
+6dBm |
|||
| Third-order Intermodulation Distortion (TOI) (Input mixer two -10dBm signal test with 50kHz frequency interval.20℃~30℃) |
Frequency Range |
Value |
||
| 10MHz ~100MHz |
+14dBm |
|||
| 100MHz ~3.25GHz |
+18dBm |
|||
| 3.25GHz ~5.25GHz |
+20dBm |
|||
| 5.25GHz ~8.2GHz |
+21dBm |
|||
| 8.2GHz ~50GHz |
+18dBm |
|||
| 50GHz ~67GHz |
+18dBm |
|||
| Residual Response (Input connected to matched load, 0dB attenuation) |
1MHz~8GHz -98dBm |
|||
| Size |
W(mm)×H(mm)×D(mm): |
|||
| (426±4)mm ×(222±4)mm ×(450±4)mm(Handles, feet, padded feet and side carry straps not included) |
||||
| Maximum Weight |
Approx. 35kg (weight varies depending on option configuration) |
|||
| Power Supply |
AC 100 ~240V:50~60Hz |
|||
| Power Consumption |
Maximum power consumption 450W (standard) |
|||
| Temperature Range |
Working Temperature:0°C~+50°C |
|||
| Storage Temperature:-40°C~+70°C |
||||
Product Overview

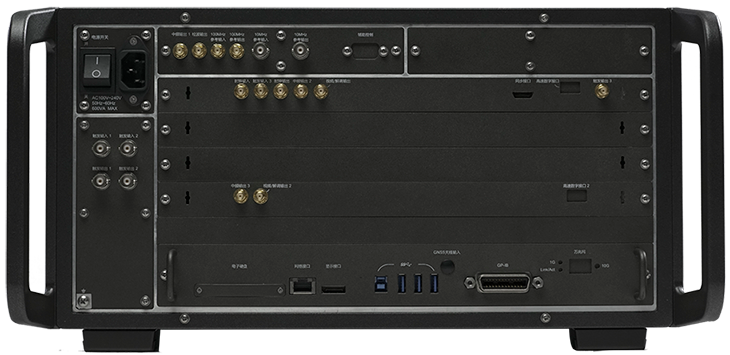

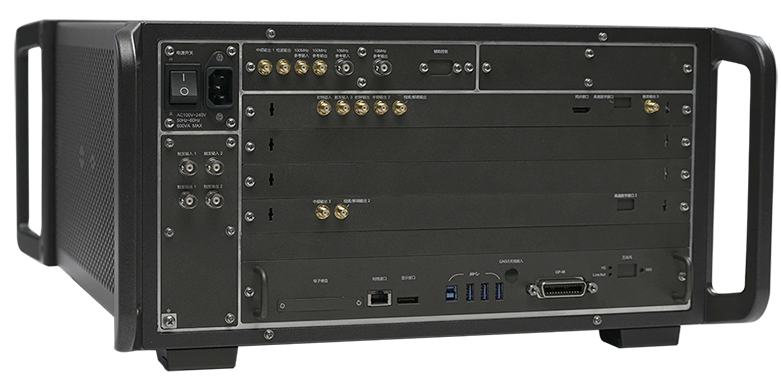

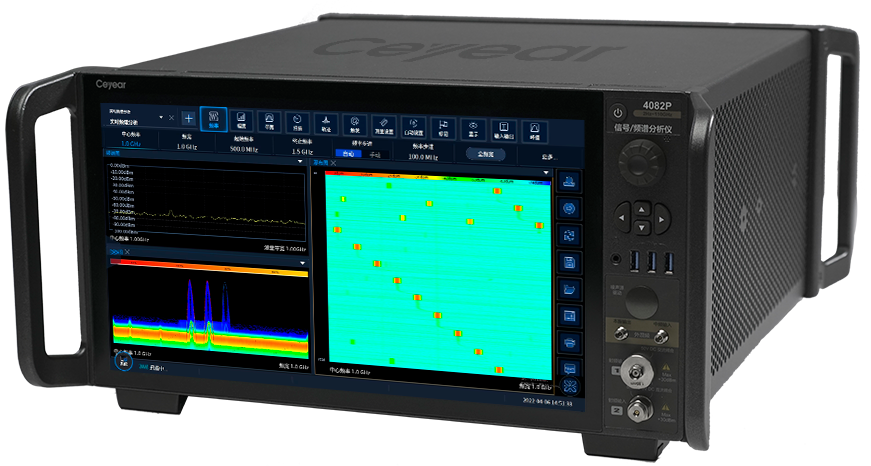

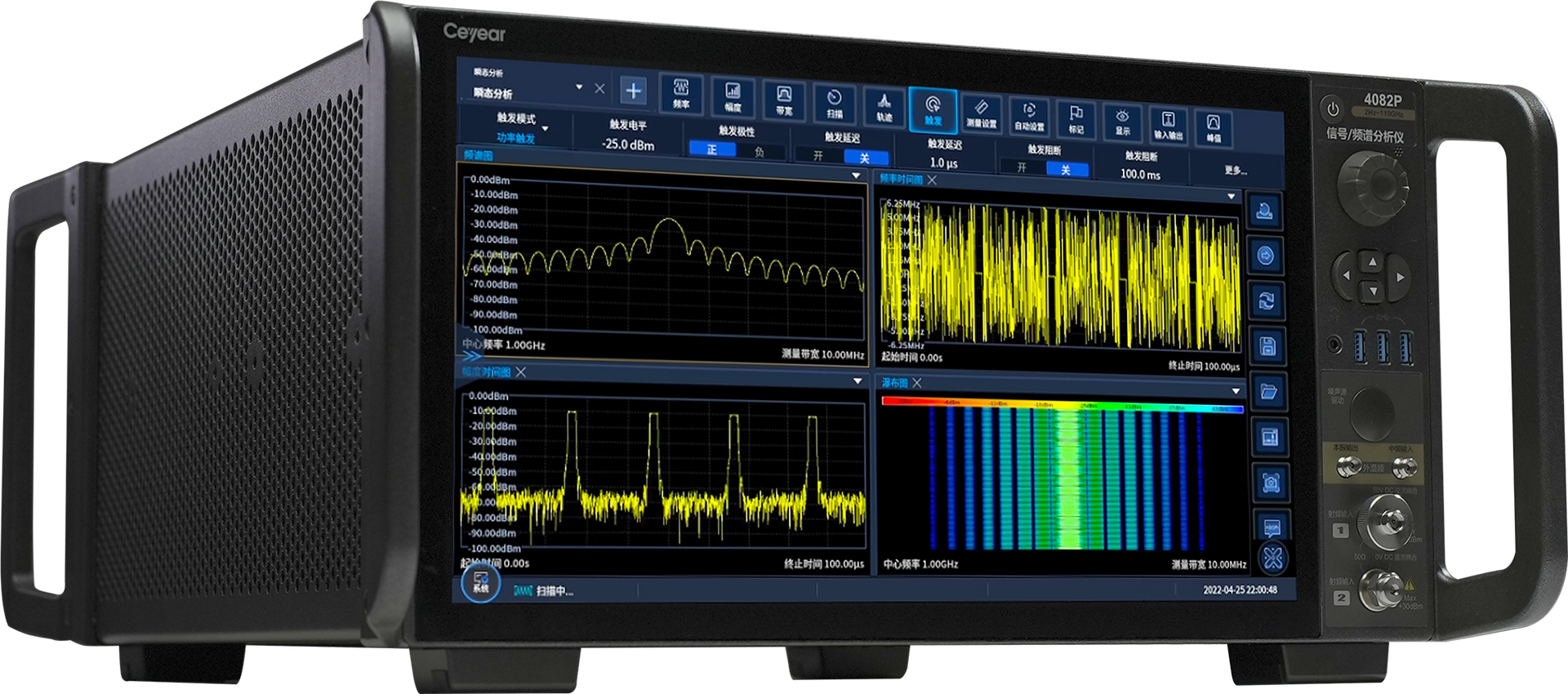

The Ceyear 4082 Series Signal/Spectrum Analyzer is the new flagship product from Ceyear.
It offers excellent RF performance in terms of displaying average noise level, phase noise, intermodulation rejection, dynamic range, amplitude accuracy and test speed. It is equipped with powerful spectrum analysis, standard-compliant power measurement suite, I/Q analysis, transient analysis, pulse signal analysis, real-time spectrum analysis, analog modulation analysis, vector signal analysis, and many other measurement functions.
Good expansion capability, can be through a variety of digital and analog output interface to build the test system or secondary development. Up to 2GHz analysis bandwidth, with the corresponding software analysis options, to meet your demanding needs in signal and device testing in mobile communications, satellite communications, Internet of Things, semiconductors and other fields.
