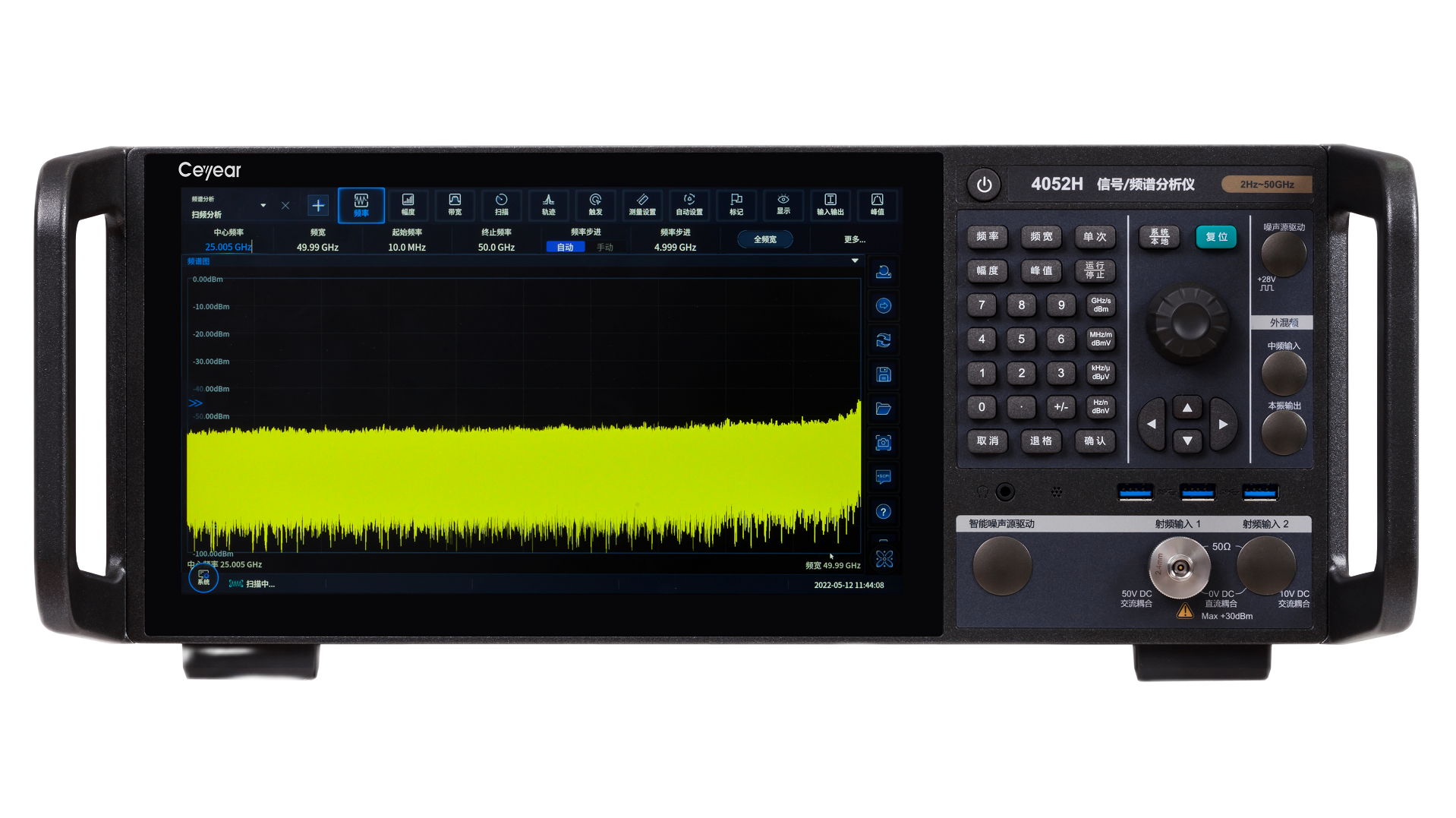

Frequency Range

Model       DC coupling        AC coupling

4052A       2 Hz ~ 4 GHz       10 MHz ~ 4 GHz

4052B       2 Hz ~ 8 GHz       10 MHz ~ 8 GHz

4052C       2 Hz ~ 13.6 GHz     10 MHz ~ 13.6 GHz

4052D      2 Hz ~ 18 GHz      10 MHz ~ 18 GHz

4052E      2 Hz ~ 26.5 GHz       10 MHz ~ 26.5 GHz

4052F      2 Hz ~ 40 GHz      10 MHz ~ 40 GHz

4052G      2Hz~45GHz      10 MHz ~ 45 GHz

4052H      2 Hz ~ 50 GHz      10 MHz ~ 50 GHz

10MHz

Precision Frequency Reference

Frequency accuracy:   ± (To last calibration date × Aging rate + Temperature stability + Calibration accuracy)

Aging rate:       ± 5 × 10 ^-10 / day

Temperature stability: ± 5 ´ 10 ^-8

Calibration accuracy:   ± 4 ´ 10 ^-8

Frequency readout accuracy

± (frequency reading value  × frequency reference accuracy +  0.1% bandwidths+  5% resolution bandwidth +  2 Hz +  0.5 horizontal resolution ^* )

* :horizontal resolution  = bandwidths  / (Scanning points -1 )

Frequency counting accuracy

± (frequency reading value  × frequency reference accuracy+ 0.1 Hz )

Bandwidths

Range:  0 Hz (zero bandwidths),  10 Hz ~ Maximum Frequency Range

Accuracy:  ± ( 0.1% × bandwidths + bandwidths  / (scanning points  - 1 ))

Scanning time Range

Bandwidths  ≥ 10Hz :   1 ms ~ 16000 s

Bandwidths  = 0Hz :    1 us ~ 16000 s

resolution bandwidth

Range: 0.1Hz ~ 20 MHz ( 1 ,  2 ,  3, 5 step)

Analyzing bandwidth

Standard configuration:  10 MHz

option  H38-40 :  40 MHz

option  H38-200 :  200 MHz

option  H38-400 :  400 MHz

option  H38-600 :  600 MHz

option  H38-1200 :  1.2 GHz

Video Bandwidth

1 Hz  ~  20 MHz ( 1 ,  2, 3 ,  5 step)

Trigger Mode

Free, Power, Video, External Trigger 1/2 ,Timer

Detection Mode

Normal, Positive Peak, Negative Peak, Sampling, Video Average, Power Average, Voltage Average

Phase noise
  (Carrier wave 1GHz , 20°C~30°C )

Frequency offset             Value

100 Hz                       -95 dBc/Hz

1 kHz                        -112 dBc/Hz

10 kHz                      -122 dBc/Hz

100 kHz                    -122 dBc/Hz

1 MHz                      -135 dBc/Hz

Residual FM

≤ 0.25Hz × N ( 10 Hz Resolution bandwidth, 10Hz  Video bandwidth, Within the 20 ms rated value, N values, see the number of harmonics in the frequency band division.)

Display Average Noise Level

(The input is connected to a matching load, sampling or averaging is detected, and the averaging type is logarithmic. 0dB Input attenuation, RF gain is sensitivity first, normalized to  1 Hz RBW ,  20 °C ~ 30 °C )

4052A/B    Pre-amplifier off

Frequency Range              Value

10 MHz ~1 GHz                -151 dBm

1 GHz ~ 2 GHz                  -149 dBm

2 GHz ~ 3 GHz                  -147 dBm

3 GHz ~ 4 GHz                  -144 dBm

4 GHz ~ 6 GHz                  -147 dBm

6 GHz ~ 8 GHz                  -145 dBm

4052A/B    Pre-amplifier on

Frequency Range              Value

10 MHz ~ 50 MHz            -156 dBm

50 MHz ~ 4 GHz               -161 dBm

4 GHz ~ 6 GHz                  -161 dBm

6 GHz ~ 8 GHz                  -157dBm

4052C/D/E/F/G/H    Pre-amplifier off

Frequency Range             Value

10 MHz ~ 1 GHz        -149 dBm

1 GHz ~ 2 GHz           -147 dBm

2 GHz ~ 3 GHz           -146 dBm

3 GHz ~ 4 GHz           -141 dBm

4 GHz ~ 6GHz            -142 dBm

6 GHz ~ 8 GHz           -139 dBm

8 GHz ~ 18 GHz         -145 dBm

18 GHz ~ 26.5 GHz    -141 dBm

26.5 GHz ~ 40 GHz    -135 dBm

40 GHz ~ 45 GHz       -134 dBm

45 GHz ~ 50 GHz       -130 dBm

4052C/D/E/F/G/H    Pre-amplifier on

Frequency Range             Value

10 MHz ~ 50 MHz       -156 dBm

50 MHz ~ 4 GHz          -161 dBm

4 GHz ~ 6 GHz             -161 dBm

6 GHz ~ 8 GHz             -157 dBm

8 GHz ~ 18 GHz           -157 dBm

18 GHz ~ 26.5 GHz      -154 dBm

26.5 GHz ~ 40 GHz      -151 dBm

45 GHz ~ 50 GHz         -148 dBm

Frequency Response and Absolute Amplitude Accuracy

( 10 dB attenuation,  20 °C ~ 30 °C )

Frequency Range          Pre-amplifier off, Value

10 MHz ~ 4 GHz           ±0.40 dB

4 GHz ~ 8 GHz              ±0.50 dB

8 GHz ~ 18 GHz            ±1.50 dB

18 GHz ~ 26.5 GHz       ±2.00 dB

26.5 GHz ~ 45 GHz       ±2.50 dB

45 GHz ~ 50 GHz          ±3.00 dB

Frequency Range        Pre-amplifier on, Value

10 MHz ~ 4 GHz         ±1.00 dB

4 GHz ~ 8 GHz            ±1.50 dB

8 GHz ~ 18 GHz          ±2.50 dB

18 GHz ~ 45 GHz       ±3.00 dB

45 GHz ~ 50 GHz       ±3.50 dB

Absolute amplitude accuracy
( 10 dB attenuation,  20°C ~ 30°C ,
1 Hz ≤ resolution bandwidth ≤ 1 MHz ,
Input signal -10 ~ -50 dBm ):

±0.24dB                                          500MHz Calibration frequency

± ( 0.24dB  + frequency response)   All frequecies (500MHz, e xcept calibration frequency )

1dB Gain compression

(two-tone test, resolution bandwidth 5kHz ,
3MHz frequency intervals, 20 °C ~ 30 °C )

Frequency Range             Value

10 MHz ~ 100 MHz          0   dBm

100 MHz ~ 1 GHz             0   dBm

1 GHz ~ 8 GHz                 +5 dBm

8 GHz ~ 50 GHz               +5 dBm

Third-order sympathetic distortion ( TOI )

(Input mixer two -10dBm signal Test,
frequency Interval  50kHz ,  20 ℃~ 30 ℃)

Frequency Range        Value

10MHz~200MHz     +12dBm

200MHz~4GHz      +17dBm

4GHz~8GHz       +16dBm

8GHz~50GHz      +18dBm

Residual Response

(Matched load on input, 0dB attenuation)

-90dBm                  200kHz ~ 8GHz

IQ Data

Storage depth( IQ Length):

Analyzing bandwidth ≤ 40MHz :
500M   IQ sample points, IQ Byte Length: 32 bits  I , 32 bits  Q

Analyzing bandwidth > 40MHz :
1000M  IQ sample points, IQ Byte Length: 16 bits  I , 16 bits  Q

Size

W( mm ) × H( mm ) × D( mm ) :

( 426 ± 4   ) mm ×( 177 ± 4 )  mm ×( 450 ± 4 )  mm
(Handles, feet, padded feet and side carry straps not included)

Maximum Weight

about  23 kg (Different option configurations, different weights)

Power Supply

AC 110~240V :  50~60Hz

Power Consumption

Maximum power consumption:
300 W (Standard configuration),
450 W (Configuration of broadband or real-time options such as H38/H41)

Temperature Range

Operating Temperature:  0 °C ~ +50 °C

Storage Temperature:     -40 °C ~ +70 °C
