Signal Generator
1465C/D/F/H/L Series Signal Generator
Frequency rang
100kHz~67GHz
Pulse modulation minimum pulse width
20ns
Single-sideband phase noise
(10 GHz carrier @ 10 kHz frequency offset)
-126dBc/Hz
Maximum output power Power dynamic range
1W@20GHz 150dB
Technical Specifications
| Frequency Characteristic |
|||||||||||||||||||||
| Frequency Range |
1465C: 100 kHz ~ 10 GHz 1465D: 100 kHz ~ 20 GHz 1465D+H06: 10 MHz ~ 20 GHz 1465F: 100 kHz ~ 40 GHz 1465H: 100 kHz ~ 50 GHz 1465L: 100 kHz ~ 67 GHz ( Maximum frequency up to 70 GHz) |
Frequency |
N (Internal YO harmonic number) |
||||||||||||||||||
| 100 kHz ≤ f ≤ 250 MHz |
1/8 |
||||||||||||||||||||
| 250 MHz ＜ f ≤ 500 MHz |
1/16 |
||||||||||||||||||||
| 500 MHz ＜ f ≤ 1 GHz |
1/8 |
||||||||||||||||||||
| 1 GHz ＜ f ≤ 2 GHz |
1/4 |
||||||||||||||||||||
| 2 GHz ＜ f ≤ 3.2 GHz |
1/2 |
||||||||||||||||||||
| 3.2 GHz ＜ f ≤ 10 GHz |
1 |
||||||||||||||||||||
| 10 GHz ＜ f ≤ 20 GHz |
2 |
||||||||||||||||||||
| 20 GHz ＜ f ≤ 40 GHz |
4 |
||||||||||||||||||||
| 40 GHz ＜ f ≤ 67 GHz |
8 |
||||||||||||||||||||
| Frequency Resolution |
0.001 Hz |
||||||||||||||||||||
| Frequency Switch time |
< 20 ms |
||||||||||||||||||||
| Time-based aging rate (typical) |
±5×10 -10 / Days (after 30 days of continuous energization) |
||||||||||||||||||||
| Reference Output |
Frequency |
10 MHz |
|||||||||||||||||||
| Power |
> +4 dBm ,Up to 50 Ω loads |
||||||||||||||||||||
| Reference Input |
Frequency |
1 ~50 MHz,step 1 Hz |
|||||||||||||||||||
| Power |
-5 dBm ~ +10 dBm,Impedance 50 Ω |
||||||||||||||||||||
| Scanning Characteristics |
|||||||||||||||||||||
| Scanning Mode |
Step scanning, List scanning, Analog scanning , Power scanning |
||||||||||||||||||||
| Analog Frequency Sweep (option H03) |
Max scanning speed |
100 kHz ≤ f ≤ 500 MHz |
25 MHz/ms |
||||||||||||||||||
| 500 MHz ＜ f ≤ 1 GHz |
50 MHz/ms |
||||||||||||||||||||
| 1 GHz ＜ f ≤ 2 GHz |
100 MHz/ms |
||||||||||||||||||||
| 2 GHz ＜ f ≤ 3.2 GHz |
200 MHz/ms |
||||||||||||||||||||
| 3.2 GHz ＜ f |
400 MHz/ms |
||||||||||||||||||||
| Scanning accuracy |
±0.05% sweep width(scanning time100ms,Within the specified maximum sweep width of 100ms) |
||||||||||||||||||||
| Power Characteristics |
|||||||||||||||||||||
| Minimum Power |
Model |
Standard configuration |
option H01A/B |
||||||||||||||||||
| 1465C/D/F |
-20 dBm |
-110 dBm (Settable -135 dBm) |
|||||||||||||||||||
| 1465D+ option H06 |
-10 dBm |
-90 dBm (Settable -125 dBm) |
|||||||||||||||||||
| 1465H/L |
-20 dBm |
-90 dBm (Settable -110 dBm) |
|||||||||||||||||||
| Maximum Power (25±10 ℃) |
Frequency Range |
Standard configuration |
Programmable step attenuator option H01A/B |
Large Power Output option H05 |
option H01A/B+H05 |
||||||||||||||||
| 1465C/D |
|||||||||||||||||||||
| 100 kHz ≤ f ≤ 20 GHz |
15 dBm |
15 dBm |
20 dBm |
20 dBm |
|||||||||||||||||
| 1465D+ option H06 |
|||||||||||||||||||||
| 10 MHz ≤ f ≤ 20 GHz |
28 dBm |
27 dBm |
--- |
--- |
|||||||||||||||||
| 1465F |
|||||||||||||||||||||
| 100 kHz ≤ f ≤ 9 GHz |
12 dBm |
12 dBm |
20 dBm |
20 dBm |
|||||||||||||||||
| 9 GHz ＜ f ≤ 40 GHz |
12 dBm |
12 dBm |
17 dBm |
17 dBm |
|||||||||||||||||
| 1465H/L |
|||||||||||||||||||||
| 100 kHz ≤ f ≤ 15 GHz |
5 dBm |
5 dBm |
17 dBm |
17 dBm |
|||||||||||||||||
| 15 GHz ＜ f ≤ 30 GHz |
5 dBm |
5 dBm |
13 dBm |
13 dBm |
|||||||||||||||||
| 30 GHz ＜ f ≤ 67 GHz |
5 dBm |
4 dBm |
8 dBm |
8 dBm |
|||||||||||||||||
| PowerAccuracy (25±10 ℃) |
Standard configuration |
||||||||||||||||||||
| Frequency Power( dBm) |
> 20 |
> 10 ~20 |
> -10 ~10 |
-20 ~ -10 |
|||||||||||||||||
| 100 kHz ≤ f ≤ 2 GHz |
--- |
±0.8 dB |
±0.6 dB |
±1.5 dB |
|||||||||||||||||
| 2 GHz ＜ f ≤ 20 GHz |
--- |
±0.8 dB |
±0.8 dB |
±1.5 dB |
|||||||||||||||||
| 20 GHz ＜ f ≤ 40 GHz |
--- |
±1.0 dB |
±0.9 dB |
±1.8 dB |
|||||||||||||||||
| 40 GHz ＜ f ≤ 50 GHz |
--- |
--- |
±1.3 dB |
±1.8 dB |
|||||||||||||||||
| 50 GHz ＜ f ≤ 67 GHz |
--- |
--- |
±1.5 dB |
±2.0 dB |
|||||||||||||||||
| 1465D + Enhanced Large Power Output option H06 |
|||||||||||||||||||||
| 500 MHz ＜ f ≤ 20 GHz |
±1.2 dB |
±0.8 dB |
±0.9 dB |
--- |
|||||||||||||||||
| H01A/B Programmable step attenuator option |
|||||||||||||||||||||
| Frequency Power( dBm) |
> 20 |
>10 ~20 |
> -10 ~10 |
> -70 ~-10 |
-90 ~ -70 |
||||||||||||||||
| 100 kHz ≤ f ≤ 2 GHz |
--- |
±0.8 dB |
±0.6 dB |
±0.7 dB |
±1.5 dB |
||||||||||||||||
| 2 GHz ＜ f ≤ 20 GHz |
--- |
±0.8 dB |
±0.8 dB |
±0.9 dB |
±1.8 dB |
||||||||||||||||
| 20 GHz ＜ f ≤ 40 GHz |
--- |
±1.0 dB |
±0.9 dB |
±1.0 dB |
±2.0 dB |
||||||||||||||||
| 40 GHz ＜ f ≤ 50 GHz |
--- |
--- |
±1.3 dB |
±1.5 dB |
±2.5 dB |
||||||||||||||||
| 50 GHz ＜ f ≤ 67 GHz |
--- |
--- |
±1.5 dB |
±1.8 dB |
±3.0 dB |
||||||||||||||||
| 1465D + Enhanced Large Power Outputoption H06 |
|||||||||||||||||||||
| 500 MHz ＜ f ≤ 20 GHz |
±1.2 dB |
±0.8 dB |
±0.8 dB |
±1.1 dB |
±2.0 dB |
||||||||||||||||
| Power Resolution |
0.01 dB |
||||||||||||||||||||
| Power temperature stability |
0.02 dB/ ℃(typical value) |
||||||||||||||||||||
| Output Impedance |
50 Ω (rated value 3 ) |
||||||||||||||||||||
| Source VSWR (internal steady rate) (typical value) |
100 kHz ≤ f ≤ 20 GHz |
< 1.6 |
|||||||||||||||||||
| 20 GHz ＜ f ≤ 40 GHz |
< 1.8 |
||||||||||||||||||||
| 40 GHz ＜ f ≤ 67 GHz |
< 2.0 |
||||||||||||||||||||
| Maximum Reverse Power |
0.5 W (0 V DC) (rated value) |
||||||||||||||||||||
| Spectrum purity |
|||||||||||||||||||||
| Harmonic Wave (Lesser one of +10 dBm or Maximum Output Power) |
Frequency |
Standard configuration |
Enhanced Large Power option H06 |
||||||||||||||||||
| 100 kHz ≤ f ≤ 10 MHz |
< -25 dBc |
--- |
|||||||||||||||||||
| 10 MHz ＜ f ≤ 2 GHz |
< -30 dBc |
< -25 dBc |
|||||||||||||||||||
| 2 GHz ＜ f ≤ 6 GHz (1465B) |
< -30 dBc |
--- |
|||||||||||||||||||
| 2 GHz ＜ f ≤ 9 GHz |
< -55 dBc |
<-35 dBc |
|||||||||||||||||||
| 9 GHz ＜ f ≤ 14 GHz |
< -55 dBc |
<-27 dBc |
|||||||||||||||||||
| 14 GHz ＜ f ≤ 20 GHz |
<-55 dBc |
<-30 dBc |
|||||||||||||||||||
| 20 GHz ＜ f ≤ 67 GHz |
<-50 dBc(typical value) |
--- |
|||||||||||||||||||
| Sub harmonic wave (Lesser one of +10 dBm or Maximum Output Power) |
100 kHz ≤ f ≤ 10 GHz |
none |
|||||||||||||||||||
| 10 GHz ＜ f ≤ 20 GHz |
< -60 dBc |
||||||||||||||||||||
| 20 GHz ＜ f ≤ 67 GHz |
< -50 dBc |
||||||||||||||||||||
| Non-harmonic (at 0 dBm, far from 3 kHz frequency offset) |
Frequency |
Standard configuration |
option H04 |
||||||||||||||||||
| 100 kHz ≤ f ≤ 250 MHz |
<-58 dBc |
< -58 dBc |
|||||||||||||||||||
| 250 MHz ＜ f ≤ 3.2 GHz |
< -74 dBc |
< -80 dBc |
|||||||||||||||||||
| 3.2 GHz ＜ f ≤ 10 GHz |
< -62 dBc |
< -70 dBc |
|||||||||||||||||||
| 10 GHz ＜ f ≤ 20 GHz |
< -56 dBc |
< -64 dBc |
|||||||||||||||||||
| 20 GHz ＜ f ≤ 40 GHz |
< -50 dBc |
< -58 dBc |
|||||||||||||||||||
| 40 GHz ＜ f ≤ 67 GHz |
< -44 dBc |
< -52 dBc |
|||||||||||||||||||
| Single Sideband Phase Noise ( dBc/Hz,Lesser one of +10 dBm or Maximum Output Power) |
Frequency |
1Hz |
10Hz |
100Hz |
1 kHz |
10 kHz |
100 kHz |
||||||||||||||
| 100 kHz ≤ f ≤ 250 MHz |
--- |
--- |
-104 |
-121 |
-128 |
-130 |
|||||||||||||||
| 250 MHz ＜ f ≤ 500 MHz |
--- |
--- |
-108 |
-126 |
-132 |
-136 |
|||||||||||||||
| 0.5 GHz ＜ f ≤ 1 GHz |
--- |
--- |
-101 |
-121 |
-130 |
-130 |
|||||||||||||||
| 1 GHz ＜ f ≤ 2 GHz |
--- |
--- |
-96 |
-115 |
-124 |
-124 |
|||||||||||||||
| 2 GHz ＜ f ≤ 3.2 GHz |
--- |
--- |
-92 |
-111 |
-120 |
-120 |
|||||||||||||||
| 3.2 GHz ＜ f ≤ 10 GHz |
--- |
--- |
-81 |
-101 |
-110 |
-110 |
|||||||||||||||
| 10 GHz ＜ f ≤ 20 GHz |
--- |
--- |
-75 |
-95 |
-104 |
-104 |
|||||||||||||||
| 20 GHz ＜ f ≤ 40 GHz |
--- |
--- |
-69 |
-89 |
-98 |
-98 |
|||||||||||||||
| 40 GHz ＜ f ≤ 67 GHz |
--- |
--- |
-64 |
-84 |
-92 |
-92 |
|||||||||||||||
| H04 Ultra-low phase noise option |
|||||||||||||||||||||
| 100 kHz ≤ f ≤ 250 MHz |
-64 |
-92 |
-105 |
-123 |
-138 |
-141 |
|||||||||||||||
| 250 MHz ＜ f ≤ 500 MHz |
-67 |
-93 |
-111 |
-126 |
-138 |
-142 |
|||||||||||||||
| 0.5 GHz ＜ f ≤ 1 GHz |
-62 |
-91 |
-105 |
-123 |
-138 |
-138 |
|||||||||||||||
| 1 GHz ＜ f ≤ 2 GHz |
-57 |
-86 |
-100 |
-117 |
-133 |
-133 |
|||||||||||||||
| 2 GHz ＜ f ≤ 3.2 GHz |
-52 |
-81 |
-96 |
-113 |
-128 |
-128 |
|||||||||||||||
| 3.2 GHz ＜ f ≤ 10 GHz |
-43 |
-72 |
-85 |
-105 |
-120 |
-120 |
|||||||||||||||
| 10 GHz ＜ f ≤ 20 GHz |
-37 |
-66 |
-79 |
-98 |
-114 |
-114 |
|||||||||||||||
| 20 GHz ＜ f ≤ 40 GHz |
-31 |
-60 |
-73 |
-91 |
-108 |
-108 |
|||||||||||||||
| 40 GHz ＜ f ≤ 67 GHz |
-26 |
-54 |
-68 |
-85 |
-102 |
-102 |
|||||||||||||||
| Modulation Characteristics |
|||||||||||||||||||||
| Frequency Modulation (10 MHz<50 GHz,option H02A) |
Maximum frequency offset: N×16 MHz (N is the number of YO harmonics) Accuracy (1 kHz speed rate, N×20 kHz< frequency offset < N×800 kHz): < ± (3.5%×setting frequency offset+20Hz) Modulation rate (3 dB bandwith, N×500 kHz frequency offset): DC-10 MHz Distortion (1 kHz speed rate, N×20 kHz < frequency offset < N×800 kHz): < 1% |
||||||||||||||||||||
| Phase Modulation (10 MHz<50 GHz,option H02A) |
Maximum phase offset: Normal mode: N×16rad(N is the number of YO harmonics) Broa dBand mode: N×1.6rad(N is the number of YO harmonics) Accuracy (1 kHz speed rate, N×0.2rad < phase offset < N×8rad, Normal mode): < ± (5%×setting phase offset+0.01 rad) Modulation rate(3 dB bandwith): Narrowband mode DC~1 MHz(typical value) Broa dBand mode DC~10 MHz(typical value) Distortion(1 kHz speed rate,N×0.8rad < phase offset < N×8rad phase offset, Total harmonic distortion): < 1% |
||||||||||||||||||||
| Amplitude Modulation (10 MHz<50 GHz,option H02A) |
Maximum depth: > 90% Modulation rate(3 dB bandwith, 30% Modulation depth): DC~100 kHz Accuracy(1 kHz Modulation rate,30% Modulation depth): ±(6%×settingdepth+1%) Distortion(1 kHz Modulation rate, linear mode, Total harmonic distortion, 30% Modulation depth): < 1.5% |
||||||||||||||||||||
| Pulse Modulation (option H02B) |
500 MHz ~ 3.2 GHz |
> 3.2 GHz |
|||||||||||||||||||
| Switching ratio |
> 80 dB |
> 80 dB |
|||||||||||||||||||
| Rise and fall time |
< 20ns |
< 20ns |
|||||||||||||||||||
| Minimum internal steady amplitude pulse width |
1 μs |
1 μs |
|||||||||||||||||||
| Minimum unsteady amplitude pulse width |
0.1 μs |
0.1 μs |
|||||||||||||||||||
| Narrow Pulse Modulation (option H02C) |
50 MHz ~ 3.2 GHz |
> 3.2 GHz |
|||||||||||||||||||
| Switching ratio |
> 80 dB |
> 80 dB |
|||||||||||||||||||
| Rise and fall time |
< 15ns |
< 10ns |
|||||||||||||||||||
| Minimum internal steady amplitude pulse width |
1 μs |
1 μs |
|||||||||||||||||||
| Minimum unsteady amplitude pulse width |
30 ns |
20 ns |
|||||||||||||||||||
| Internal Modulation signal generator (option H02A/B/C) |
Provides 3 independent signals for Frequency/Phase Modulation, Amplitude Modulation and Low Frequency Output signals. Waveforms: Sine, Square, Triangle, Ramp, Noise, Double Sine, Sweep Sine Frequency Range:Sine, Double Sine, Sweep Sine DC~10 MHz; Square, Triangle, Ramp Wave 0.1 Hz ~100 kHz Frequency Resolution:0.1 Hz Low frequency Output :Amplitude0 ~ 5 V peak(rated value),to 50 Ω load Pulse Modulation signal:Pulse width:20 ns ~ (42 s-10 ns)Pulse period: 100 ns~42 s Resolution:10 ns |
||||||||||||||||||||
| General Characteristics |
|||||||||||||||||||||
| RF Output Port |
1465C : N Port (female), Impedance 50 Ω 1465D : 3.5 mm (male), N Port (female)(option H91), Impedance50 Ω 1465F : 2.4 mm (male), Impedance50 Ω 1465H/L :1.85 mm (male), Impedance50 Ω |
||||||||||||||||||||
| Maximum Size (W×H×D) |
517 mm ×192 mm ×550 mm (Includes handles and protective bottom corners) 435 mm ×178 mm ×498 mm (Excluding handles and protective bottom corners) |
||||||||||||||||||||
| Weight |
<28 kg (Different model, option and configurations, different weights) |
||||||||||||||||||||
| Power Supply |
100 ~120VAC, 50~60Hz; or 200~240VAC, 50~60Hz (self-adaptive) |
||||||||||||||||||||
| Power Consumption |
< 350W |
||||||||||||||||||||
| Temperature Range |
Working t emperature:0 ℃~+50 ℃; Storage temperature:-40 ℃~+70 ℃ |
||||||||||||||||||||
Product Overview
1465 series signal generator frequency range covers 100kHz ~ 67GHz, with excellent spectral purity and output power indicators, single-sideband phase noise 10GHz carrier @ 10kHz frequency deviation -126dBc/Hz, the maximum output power of up to 1W @ 20GHz, the dynamic range of the output power is greater than 150dB, which can satisfy the high-end needs of the test signal. High-precision analog scanning function, excellent performance of analog modulation and pulse modulation function, internal modulation signal generator frequency up to 10MHz, signal waveforms, pulse modulation minimum pulse width of 20ns and can produce flexible pulse string, to meet the analog modulation and pulse modulation of various test needs; with a large 10.1-inch display, 1280 × 800 pixels high resolution, and support for keys, mouse, touch screen and other operations. With 10.1-inch large display, 1280×800 pixels high resolution, and supporting keypad, mouse, touch screen and other operation modes, it can improve the operation experience and test efficiency at the same time. 1465 has excellent signal quality for both continuous wave and modulated signals, which is not only an ideal source of fundamental oscillator and clock, but also a high-performance analog simulation signal source, and it is mainly used for high-performance receiver test and component parameter test, which is suitable for many fields such as communication, navigation equipment, and so on.
Flexible large screen touch operation
10.1" widescreen LED display with 1280×800 high resolution clearly shows the instrument status information. Eye-catching color matching, reasonable function partition and various functions of the panel buttons not only bring you a novel visual sensation, but also give you a convenient and fast operation experience to help you improve the testing efficiency. In addition to the panel buttons, you can also operate the instrument by bringing back the rotary button of the car function, clicking and sliding on the touch screen, and connecting the keyboard and mouse, etc., and each of which can complete the operation of the instrument independently.
High-precision analog scanning
The full-band high-precision analog scanning function meets your need for fast scanning in broadband testing. In addition, it also has step scanning and list scanning functions to meet your different testing needs.
Ultra High Power Dynamic Range
With a power dynamic range of 150dB from -130dBm to +20dBm, it is the ideal choice for high sensitivity receiver testing.
Excellent analog modulation
With AM, FM, ΦM functions, supporting internal and external modulation source input, FM, ΦM modulation bandwidth DC ~ 10MHz, AM with linear and exponential two working modes, linear AM depth is more than 90%. Internal modulation signal generator frequency range DC ~ 10MHz, resolution 0.1Hz, 7 modulation waveforms, can directly output low frequency signals.
High performance pulse modulation
Modulation depth greater than 80dB, rise and fall time less than 10ns, minimum pulse width of 20ns, support for gating, external and other triggering methods. Standard internal pulse generator, 6 pulse modes, pulse width 20ns～42s, step 10ns, with pulse string function.

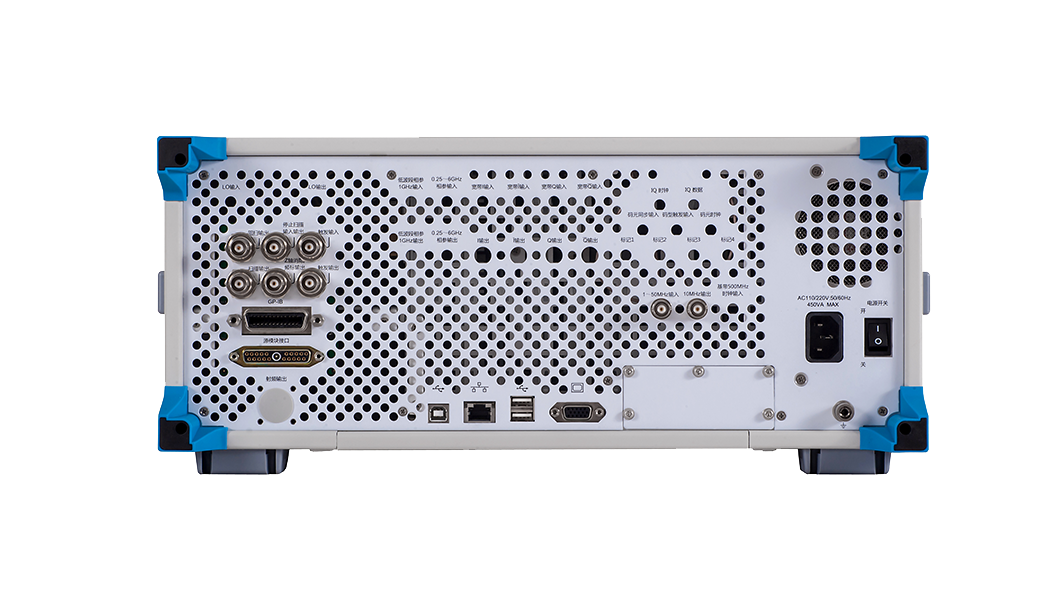

Multiple control and function expansion interfaces
Support USB, LAN, GPIB, monitor and other auxiliary interfaces, USB can be used for data transmission, external keyboard / mouse operation of the instrument, LAN, GPIB can be used for program control, monitor interface for external display.
