20402 Electronic Calibration Kits

Parameters	Frequency Range
Parameters	300kHz ～ 500MHz	500MHz ～ 2GHz	2GHz ～ 10GHz	10GHz ～ 18GHz
Directionality ( dB )	≥36	≥43	≥39	≥36
Source Matching( dB )	≥30	≥38	≥34	≥30
Load Matching( dB )	≥30	≥37	≥35	≥33
Transmission Tracking( dB )	≤0.06	≤0.08	≤0.09	≤0.10
Reflective Tracking( dB )	≤0.06	≤0.07	≤0.08	≤0.10
Port Maximum Power Limit ( dBm )	+10

20403 Electronic Calibration Kits

Parameters	Frequency Range
Parameters	10MHz ～ 500MHz	500MHz ～ 2GHz	2GHz ～ 10GHz	10GHz ～ 20GHz	20GHz ～ 26.5GHz
Directionality ( dB )	≥41	≥51	≥46	≥40	≥36
Source Matching( dB )	≥35	≥41	≥38	≥37	≥33
Load Matching( dB )	≥31	≥38	≥45	≥40	≥36
Transmission Tracking( dB )	≤0.07	≤0.08	≤0.08	≤0.10	≤0.14
Reflective Tracking( dB )	≤0.05	≤0.05	≤0.08	≤0.12	≤0.13
Port Maximum Power Limit ( dBm )	+10

20404 Electronic Calibration Kits

Parameters	Frequency Range
Parameters	10MHz ～ 2GHz	2GHz ～ 10GHz	10GHz ～ 20GHz	20GHz ～ 40GHz	40GHz ～ 50GHz
Directionality ( dB )	≥45	≥43	≥40	≥37	≥31
Source Matching( dB )	≥37	≥34	≥31	≥30	≥32
Load Matching( dB )	≥39	≥36	≥35	≥33	≥32
Transmission Tracking( dB )	≤0.06	≤0.08	≤0.09	≤0.12	≤0.15
Reflective Tracking( dB )	≤0.07	≤0.09	≤0.12	≤0.16	≤0.25
Port Maximum Power Limit ( dBm )	+10

20405 Electronic Calibration Kits

Parameters	Frequency Range
Parameters	10MHz ～ 5GHz	5GHz ～ 9GHz	9GHz ～ 13.5GHz	13.5GHz ～ 20GHz
Directionality ( dB )	≥47	≥42	≥40	≥33
Source Matching( dB )	≥38	≥33	≥32	≥28
Load Matching( dB )	≥40	≥35	≥33	≥31
Transmission Tracking( dB )	≤0.05	≤0.06	≤0.08	≤0.18
Reflective Tracking( dB )	≤0.08	≤0.12	≤0.12	≤0.20
Port Maximum Power Limit ( dBm )	+10

20409 Electronic Calibration Kits

Parameters	Frequency Range
Parameters	10MHz ～ 2GHz	2GHz ～ 20GHz	20GHz ～ 30GHz	30GHz ～ 40GHz	40GHz ～ 50GHz	50GHz ～ 60GHz	60GHz ～ 67GHz
Directionality ( dB )	≥35	≥36	≥34	≥32	≥32	≥32	≥28
Source Matching( dB )	≥30	≥33	≥27	≥27	≥26	≥25	≥24
Load Matching( dB )	≥30	≥31	≥32	≥31	≥29	≥26	≥23
Transmission Tracking( dB )	≤0.06	≤0.09	≤0.12	≤0.10	≤0.14	≤0.15	≤0.15
Reflective Tracking( dB )	≤0.06	≤0.08	≤0.11	≤0.10	≤0.12	≤0.13	≤0.15
Port Maximum Power Limit ( dBm )	+10

Product Overview

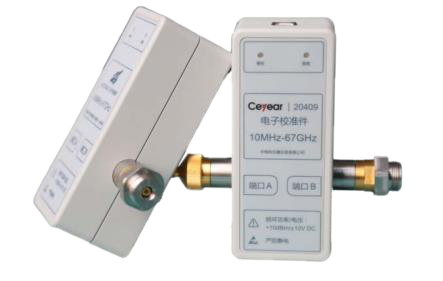

2040X series electronic calibrators include five models: 20402/20403/20404/20405/20409, covering frequency bands from 300kHz to 18GHz/10MHz to 26.5GHz/10MHz to 50GHz/10MHz to 20GHz/10MHz to 67GHz, and the interface forms include N-type 2-port/3.5mm 2-port/2.4mm 2-port/3.5mm 4-port/1.85mm 2-port, with USB interface communication and power supply, suitable for 3672 series, 3671 series, 3656 series vectorial devices. mm two-port/2.4mm two-port/3.5mm four-port/1.85mm two-port, using USB interface communication and power supply, suitable for 3672 series, 3671 series, 3656 series of vector network analyzers calibration and error correction, and compatible with Agilent ENA and PNA series of vector network analyzers.

Functional Features

Relative to mechanical calibration, it has the advantages of easy connection, fast calibration speed, small human error, small cable loss, comparable accuracy, and optional yin and yang connectors.
