Exposure Systems
Here we show some of our previous activities on exposure systems.
Generally, it is about exciting electromagnetic fields in a desired manner.
Our exposure systems are usually high power devices in the range of 100 to 1000 Watt (CW).
4-Channel Dipole Array for 128 MHz
Repairing a large birdcage RF resonator
It is an exposure system to excite strong and homogenous RF magnetic fields at 128 MHz.

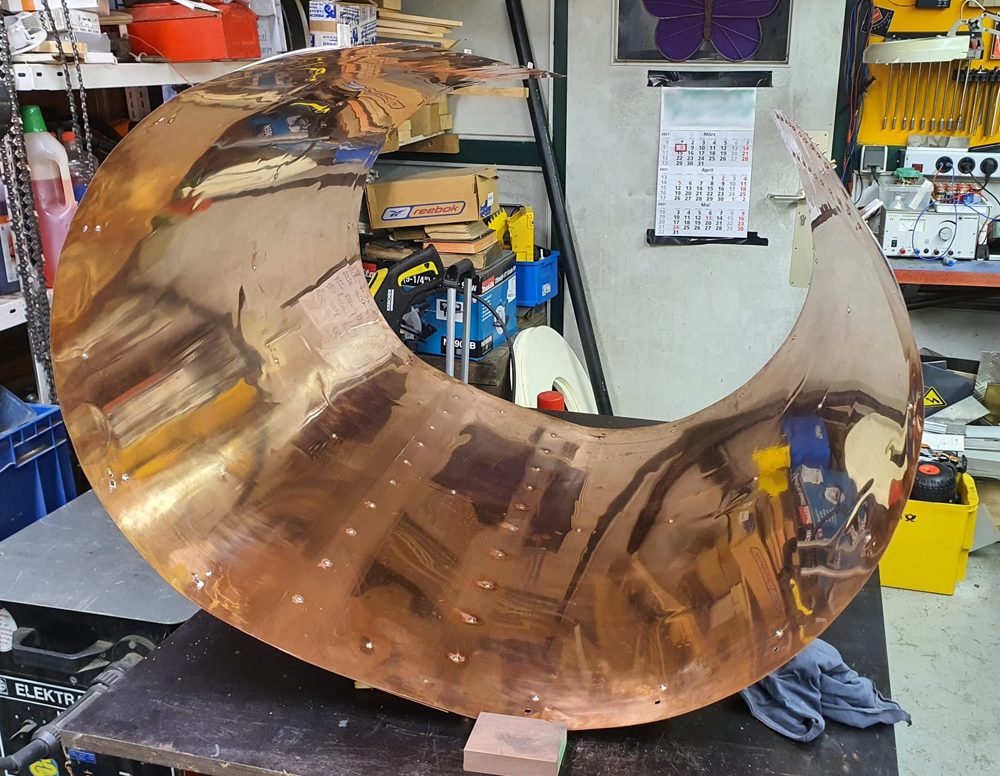

1. Assembly of the new RF shield based on two copper plates.

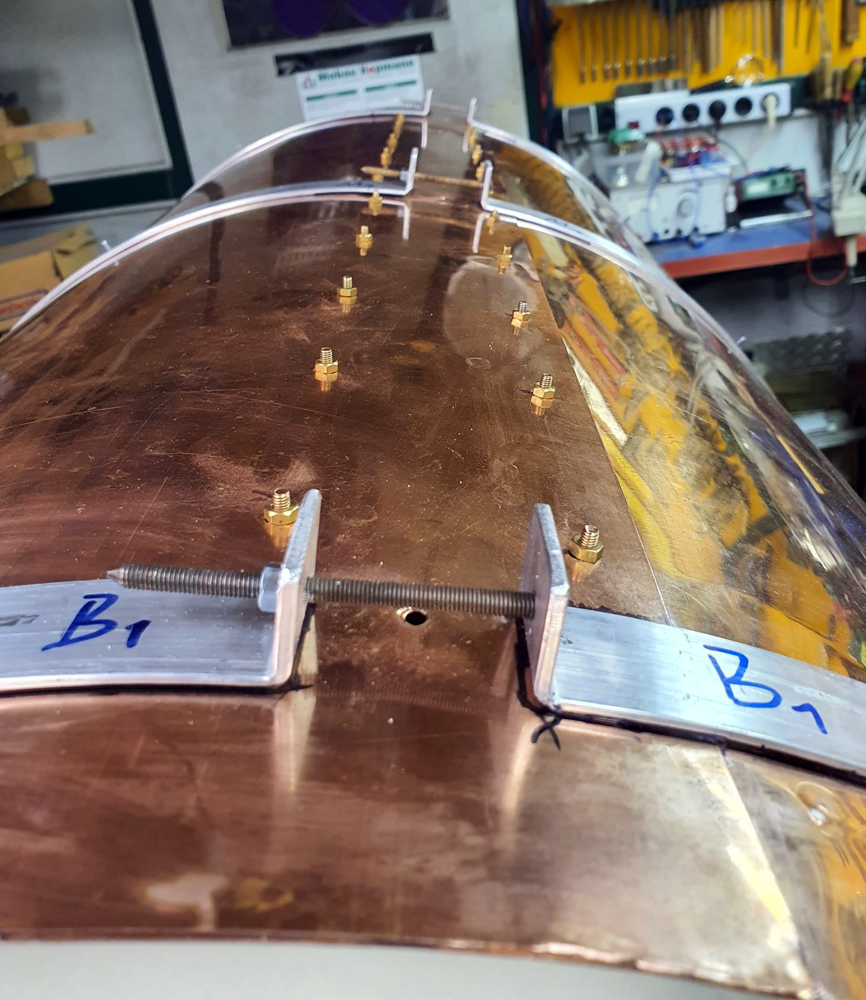

2. "Closing" of the RF shield

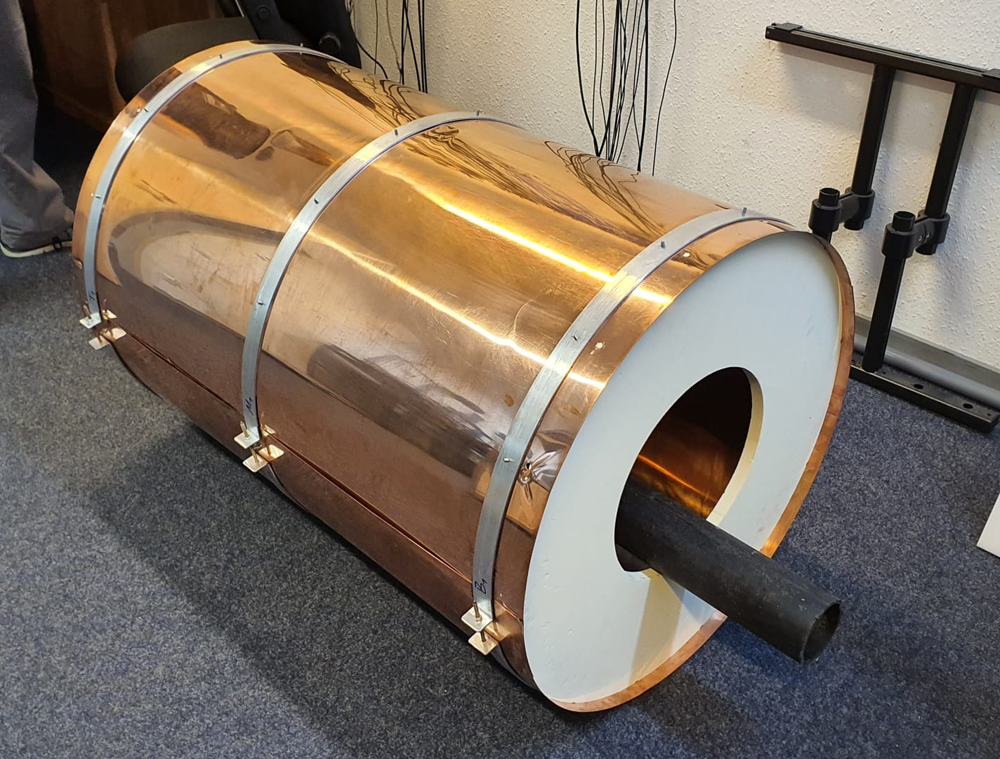

3. Test assembly of RF shield without inner birdcage resonator
4. Internal birdcage structure based on thin PCB and high voltage ceramic chip capacitors within the two end-rings.

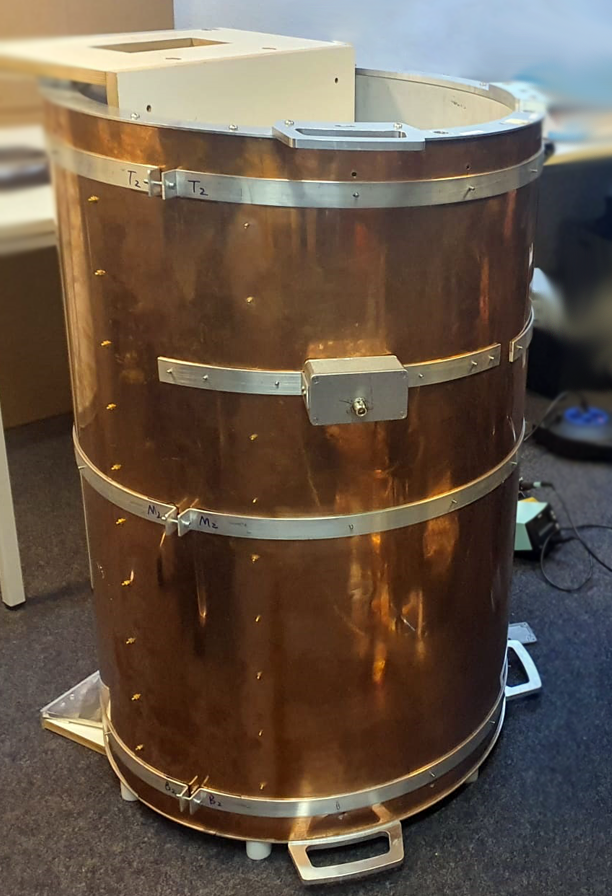

5. Complete birdcage resonator including balune inside the aluminum box
Design and fabrication of a birdcage RF resonator
Coming soon...
Design and fabrication of a TEM cell for EMI measurements
Coming soon...
